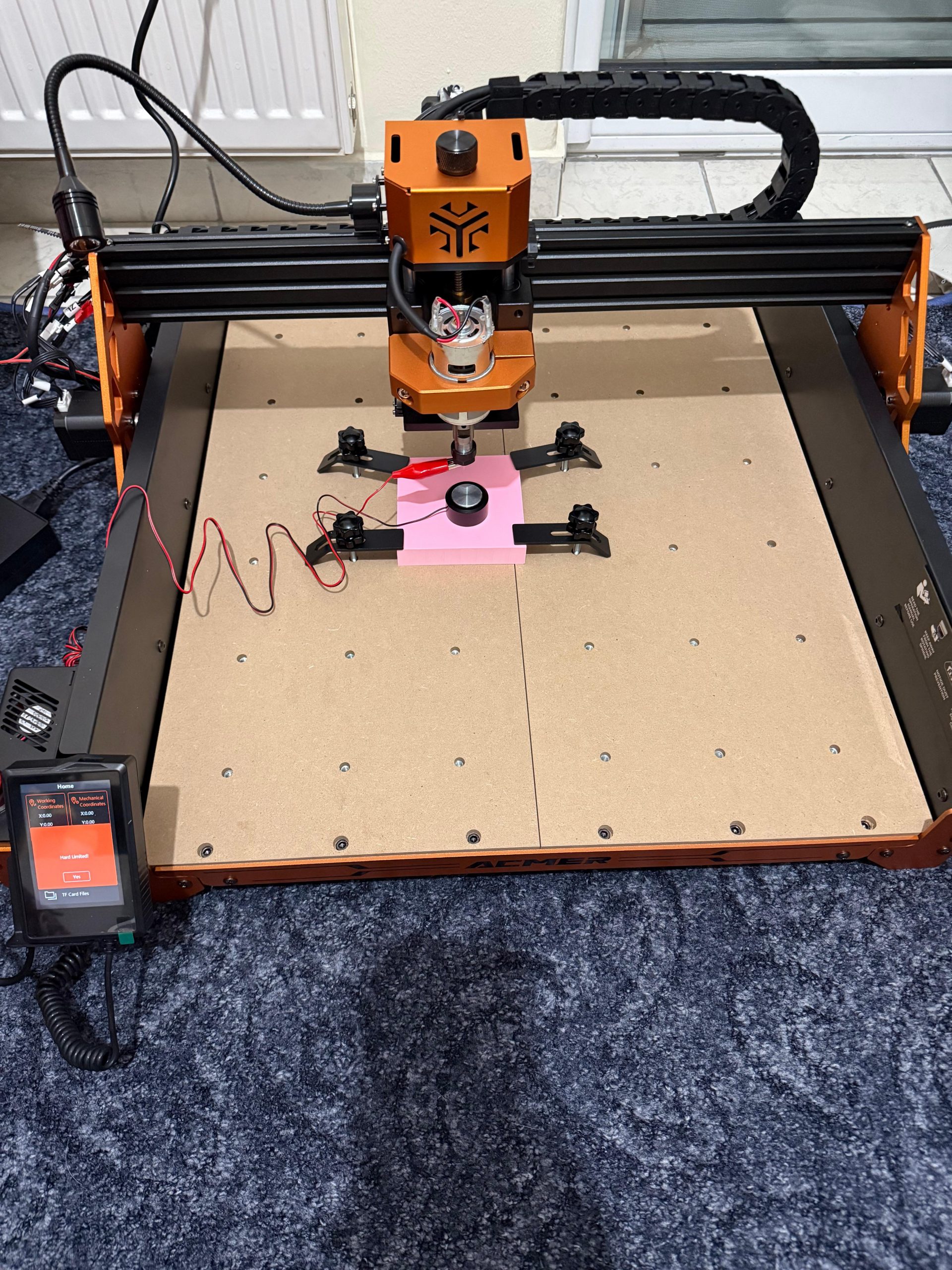

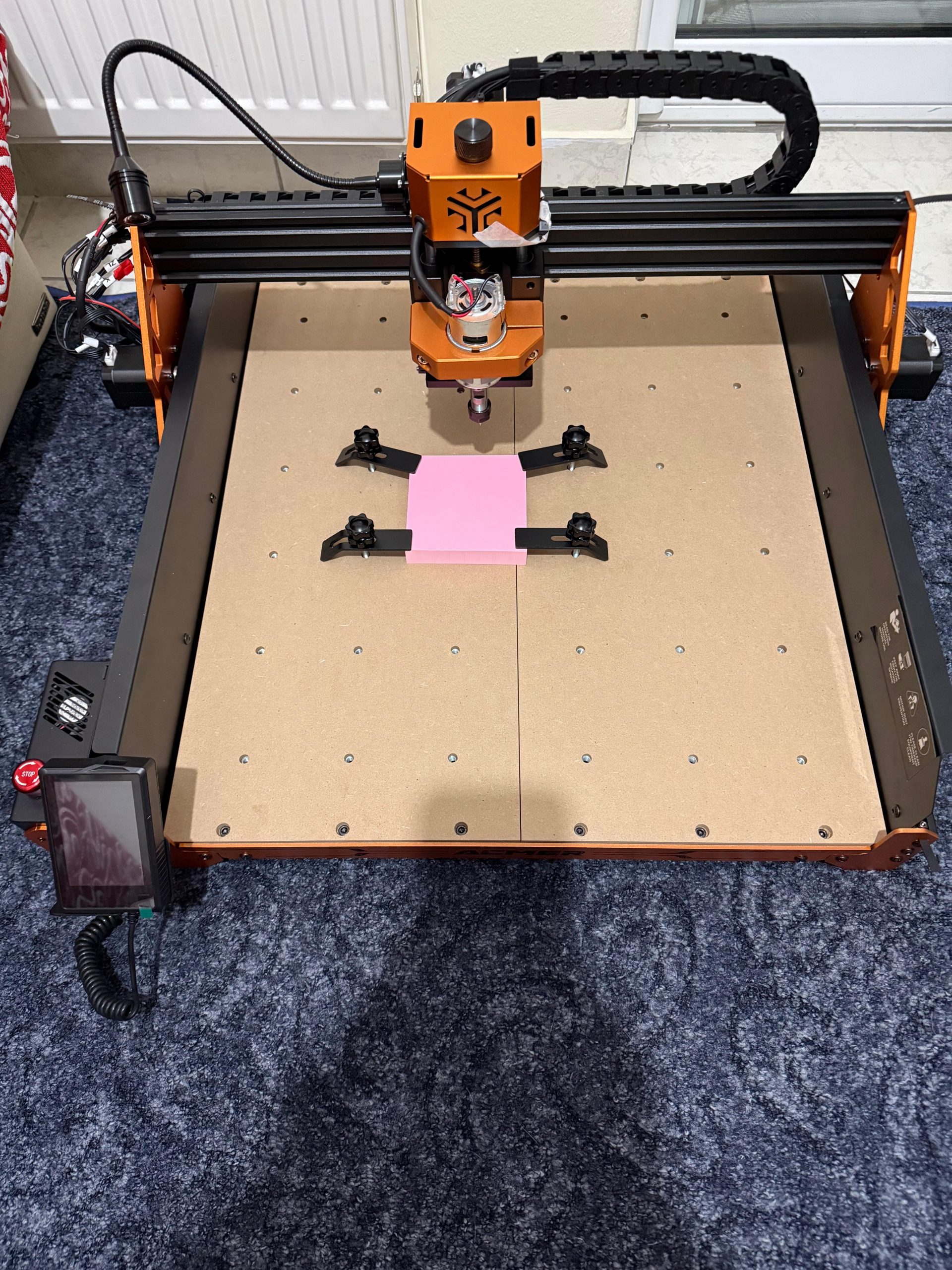

The desktop CNC market has grown rapidly, but many machines still force users to choose between precision, ease of use, and upgrade potential. The ACMER ASCARVA 4S CNC Router Machine aims to balance all three. Designed for woodworkers, makers, DIY enthusiasts, and small-scale prototyping environments, the ASCARVA 4S combines solid mechanical design, intuitive controls, and multi-function expandability (including laser support) in a compact 3-axis CNC platform.

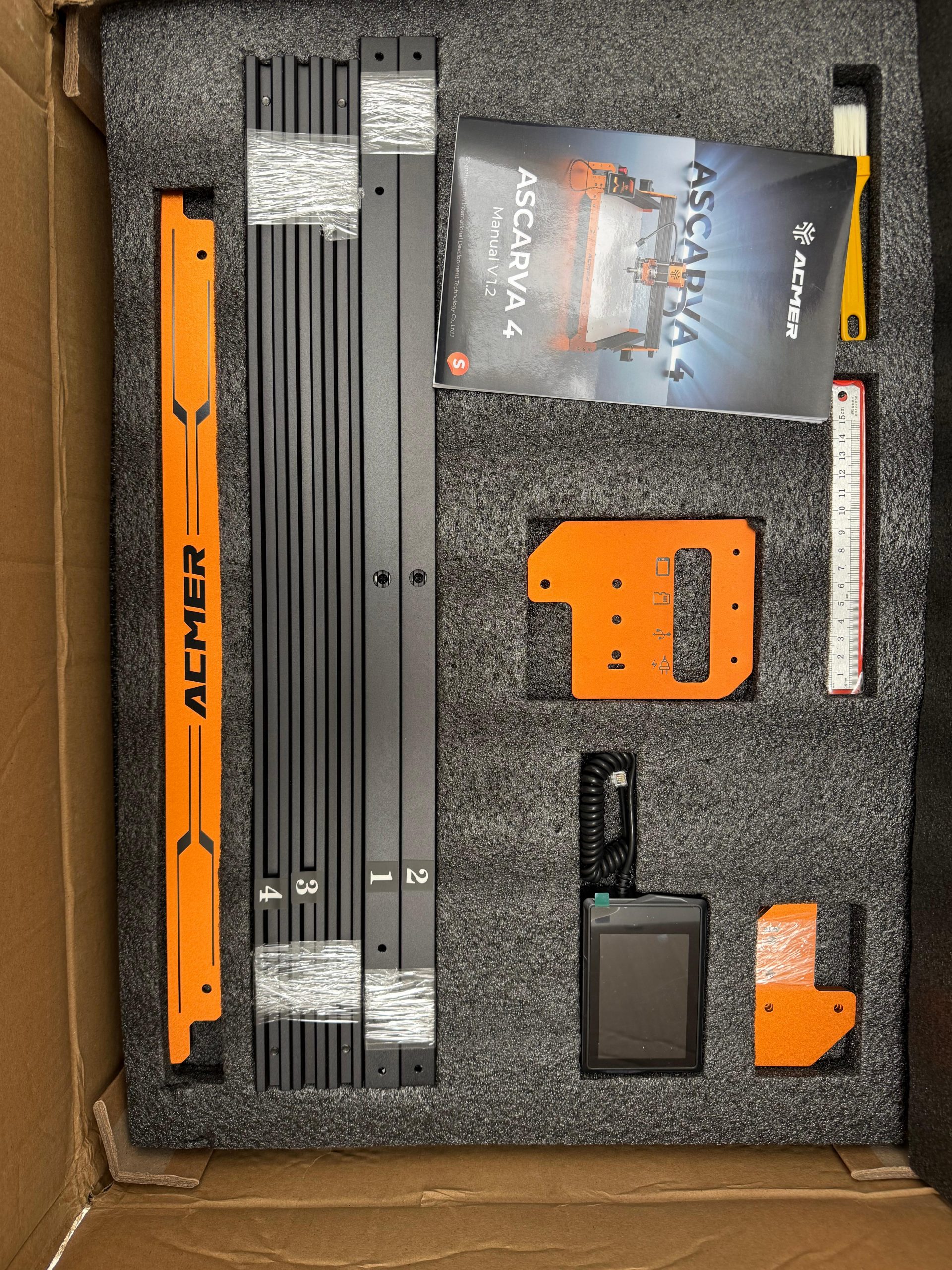

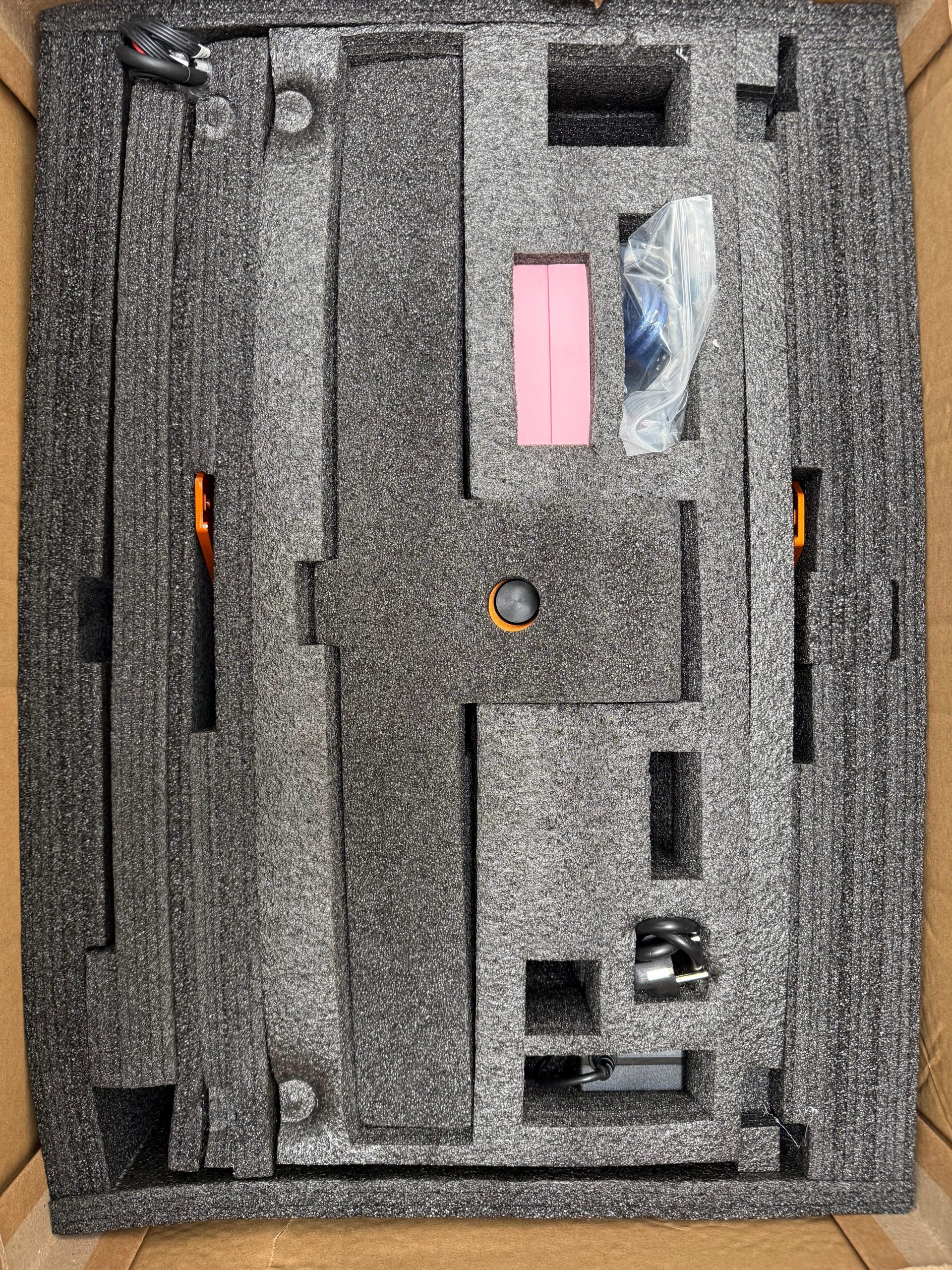

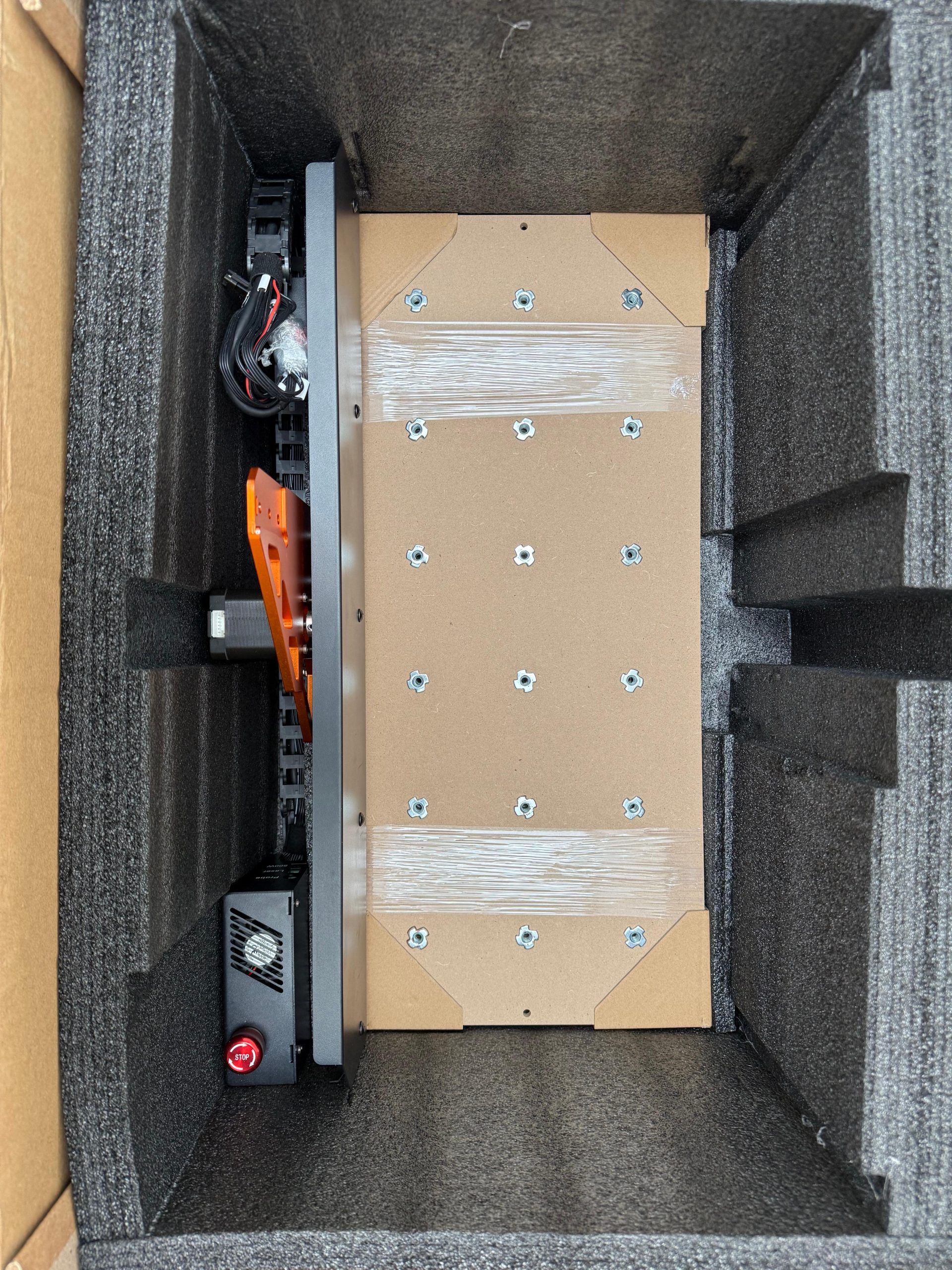

What’s in the Box
-

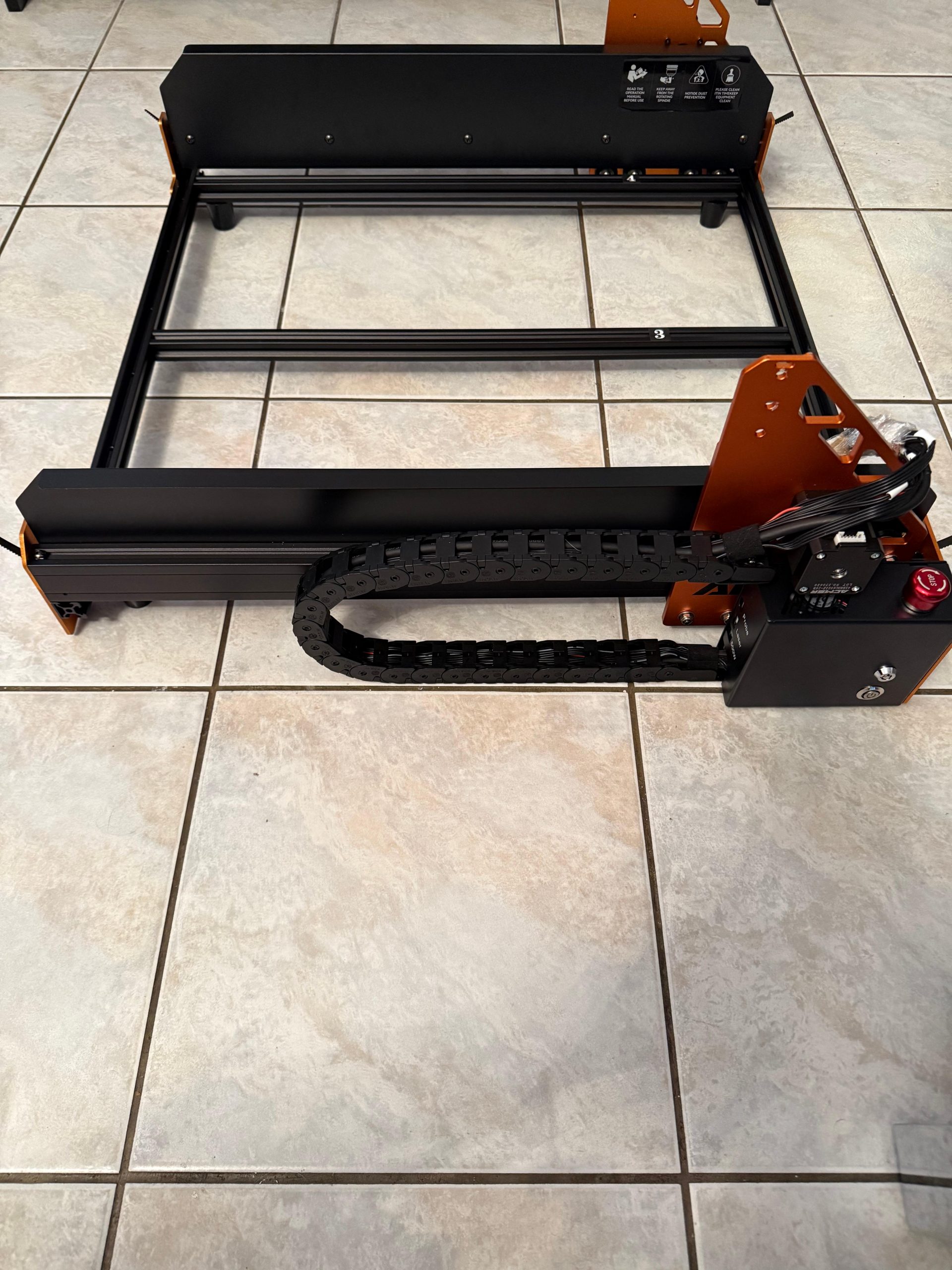

ASCARVA 4S CNC Router Machine (pre-assembled main unit)
-
70W Spindle Motor (pre-installed)
-

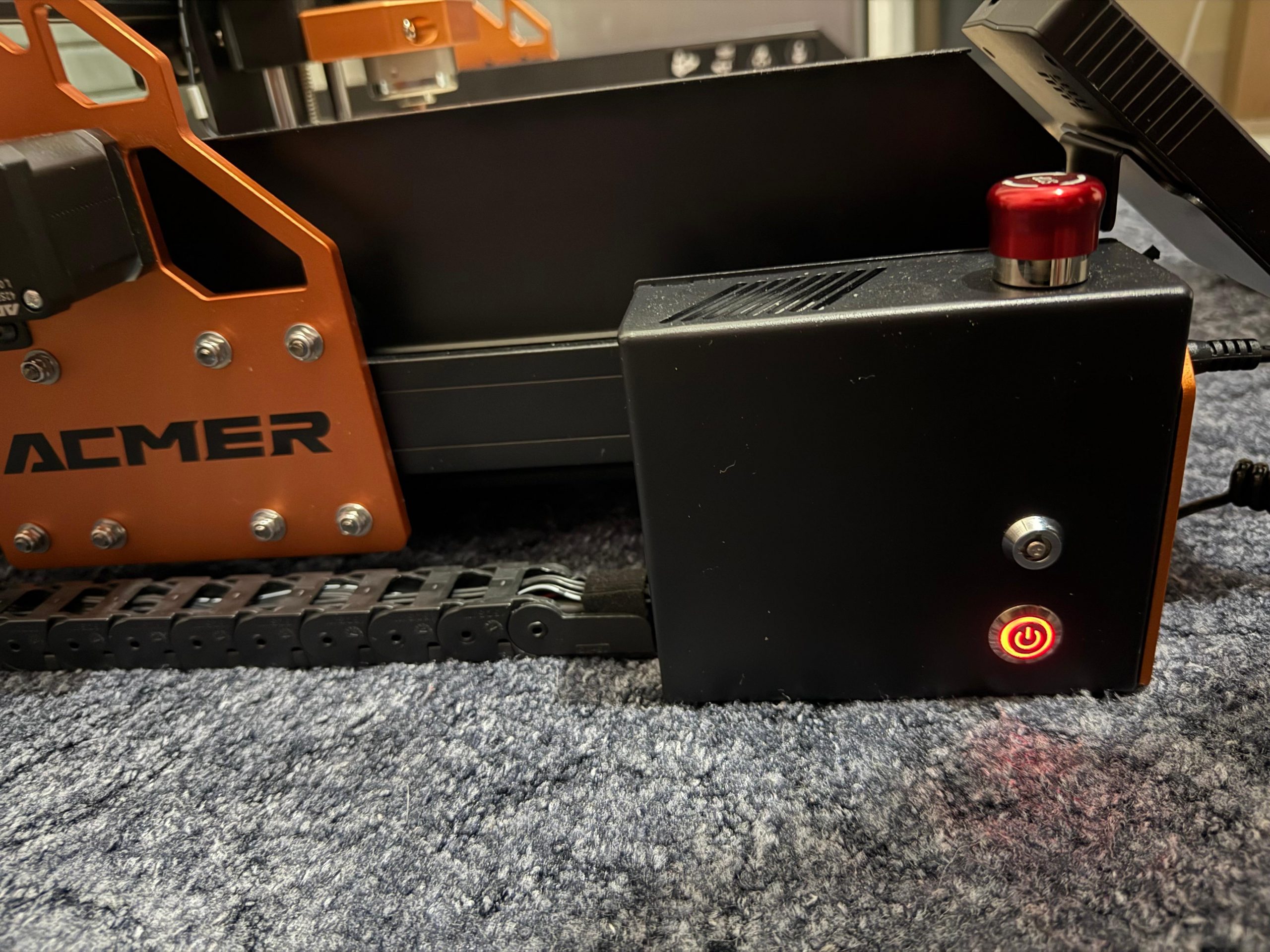

Power Supply & Control Box
-
3.5-inch Touchscreen Controller
-
Manual Z-axis Adjustment Knob
-
Complete Cable Management System (pre-routed)
-
Dust Covers (Y-axis) & Z-axis Motor Protection
-
Tool Kit & Mounting Hardware
-
User Manual
(Laser modules and higher-power spindles are optional upgrades, not included by default.)
Technical Specifications
| Specification | Details |
|---|---|
| Machine Type | 3-Axis CNC Router |
| Engraving Precision | ±0.1 mm |
| Spindle Power (Standard) | 70 W |
| Spindle Upgrade Option | Up to 500 W |
| Maximum Engraving Speed | 1000 mm/min |
| Maximum Travel Speed | 5000 mm/min |
| Acceleration | 100 mm/s² |
| Axes Drive System | Rubber wheel system on X & Y axes |
| Continuous Working Time | Up to 6 hours (stable operation) |
| Control Interface | 3.5-inch touchscreen + manual Z-axis knob |
| Languages Supported | English, Spanish, French, German |
| Laser Compatibility | Supports 5 W & 10 W laser modules |
| Materials Supported | Wood, plastic, acrylic, epoxy boards |
Design & Build Quality
Rubber Wheel Motion System
Unlike CNC routers that rely exclusively on steel wheels, the ASCARVA 4S uses rubber wheels on the X and Y axes. This design choice significantly reduces operating noise and vibration while simplifying calibration. For home workshops or shared spaces, this is a meaningful advantage.
Protection Where It Matters
ACMER has clearly designed the machine for longevity:
-
Y-axis dust cover protects moving parts from debris
-
Z-axis motor protection shields critical components during long jobs
-
Cable routing is fully integrated, minimizing wear and accidental snags
Together, these features help the ASCARVA 4S maintain accuracy even during extended 6-hour continuous sessions.

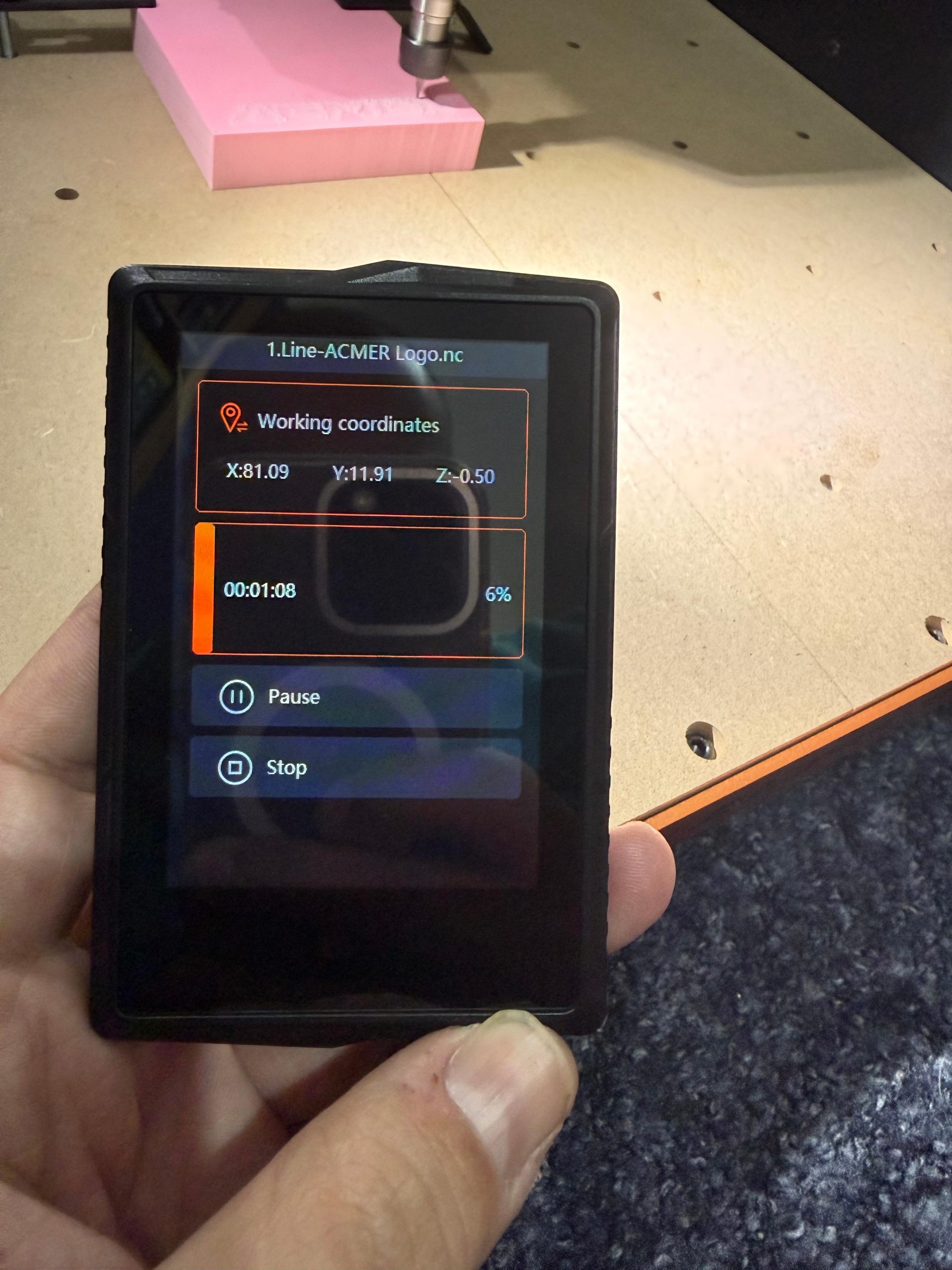

Touchscreen Control & Ease of Use

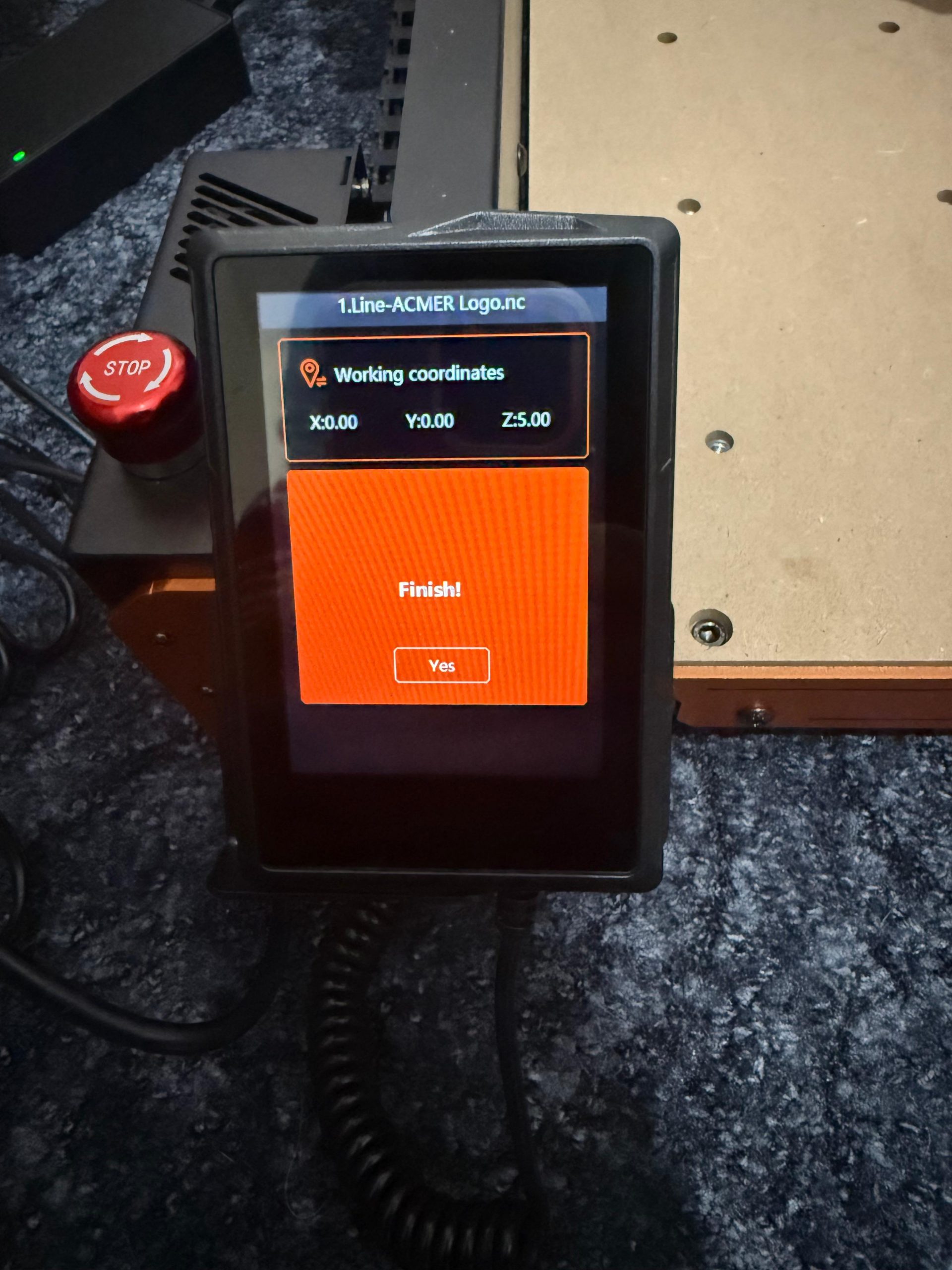

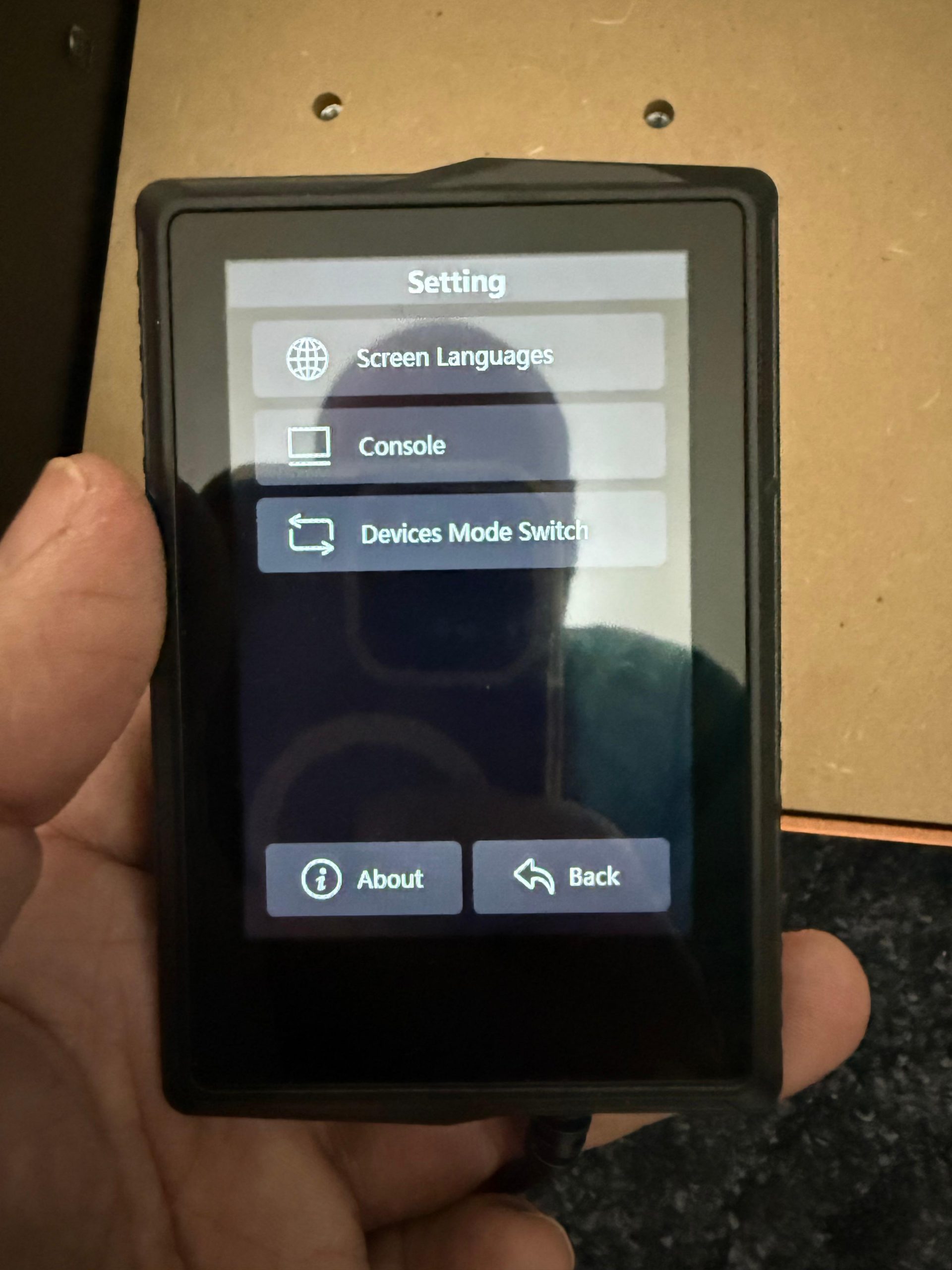

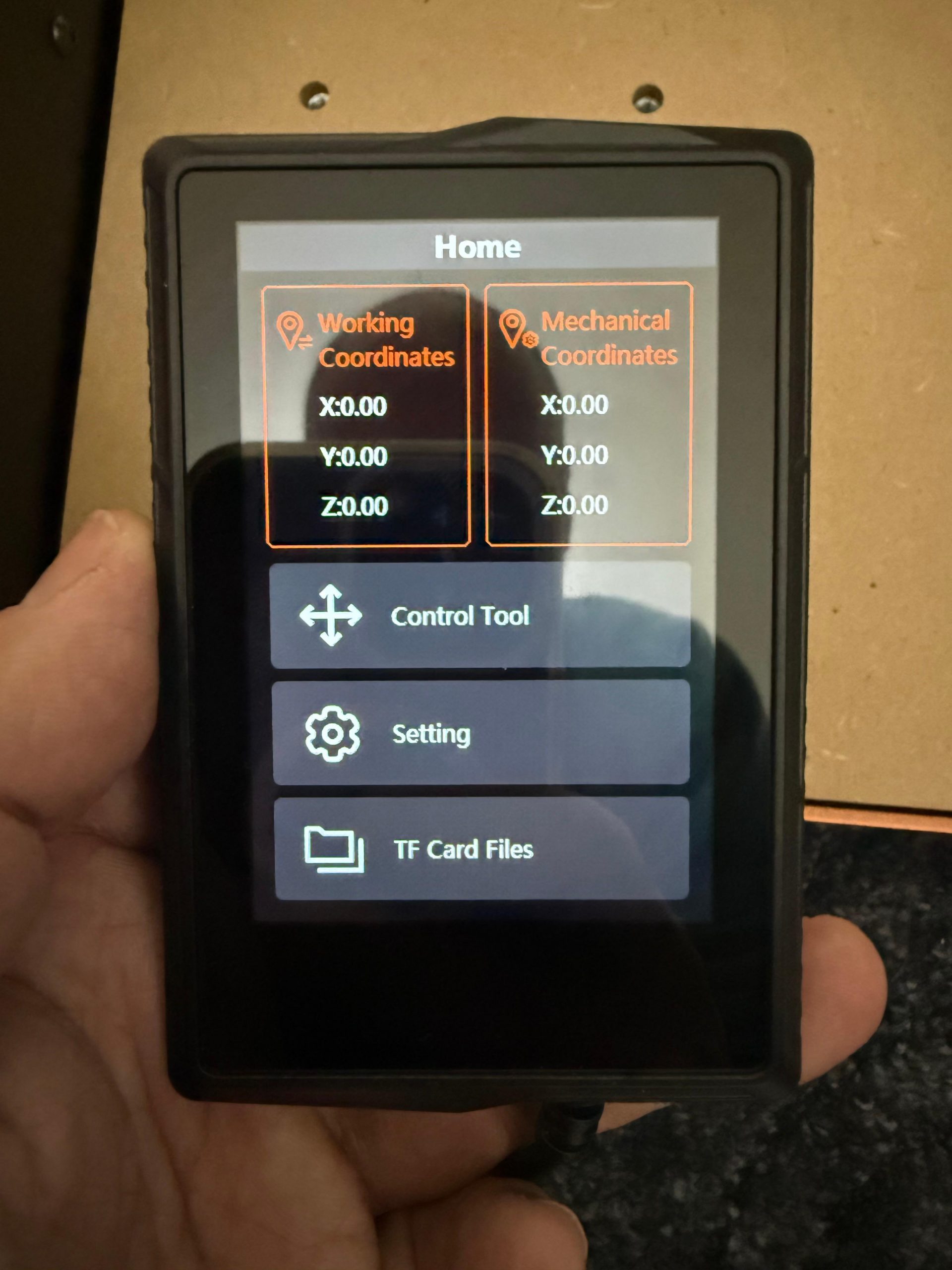

The 3.5-inch touchscreen interface is one of the machine’s strongest usability features. Unlike PC dependent CNC systems, the ASCARVA 4S allows for direct, intuitive operation:
-
Clear job status display
-
Simple menu navigation
-
Multi-language support
-
Quick access to movement and setup controls

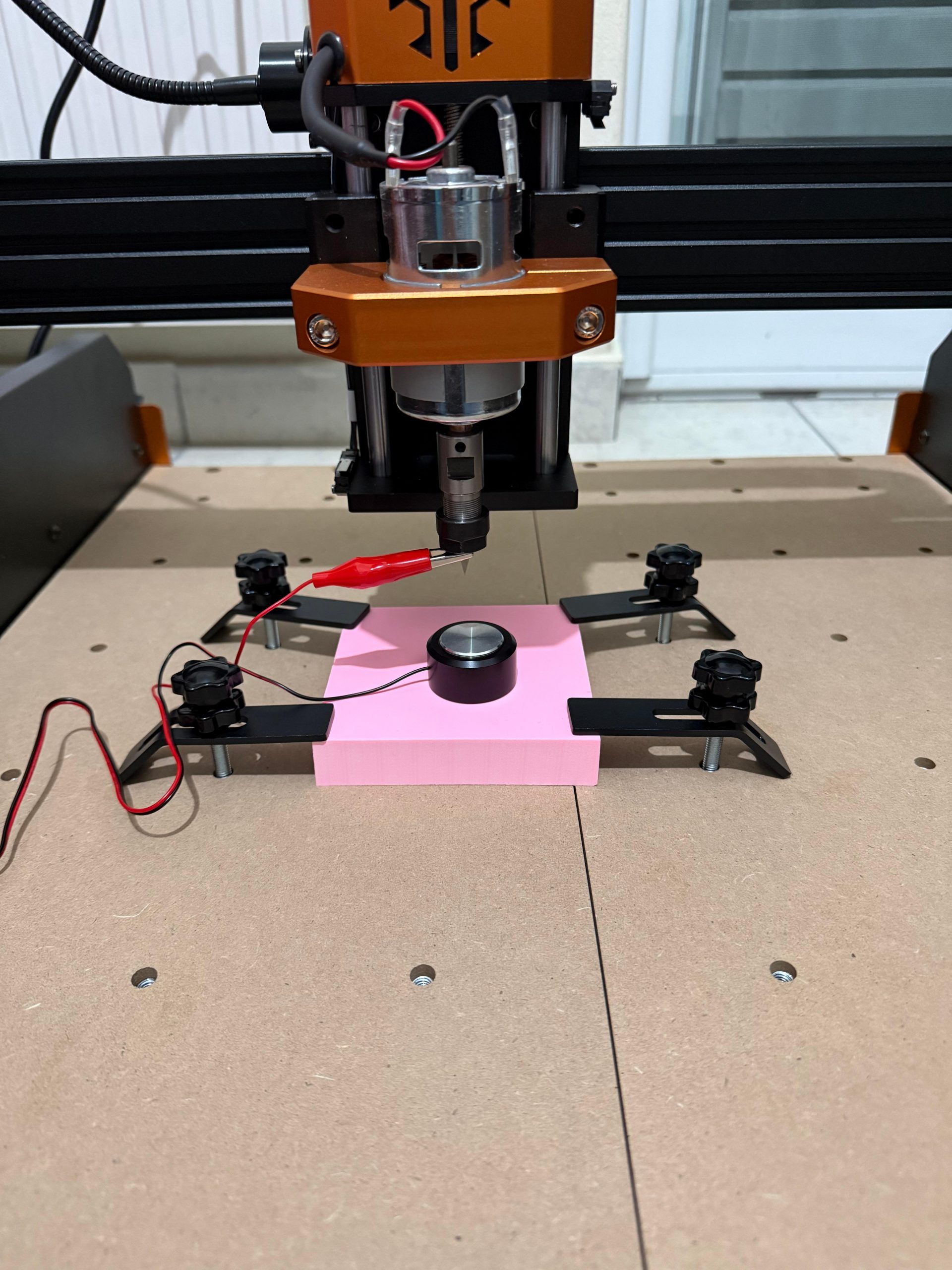

The manual Z-axis adjustment knob adds precision during setup and tool changes, giving users tactile control where it matters most.
The machine’s virtually pre-assembled design and built-in cable management reduce installation time by approximately 50%, making it especially friendly for beginners like myself.
Performance & Precision

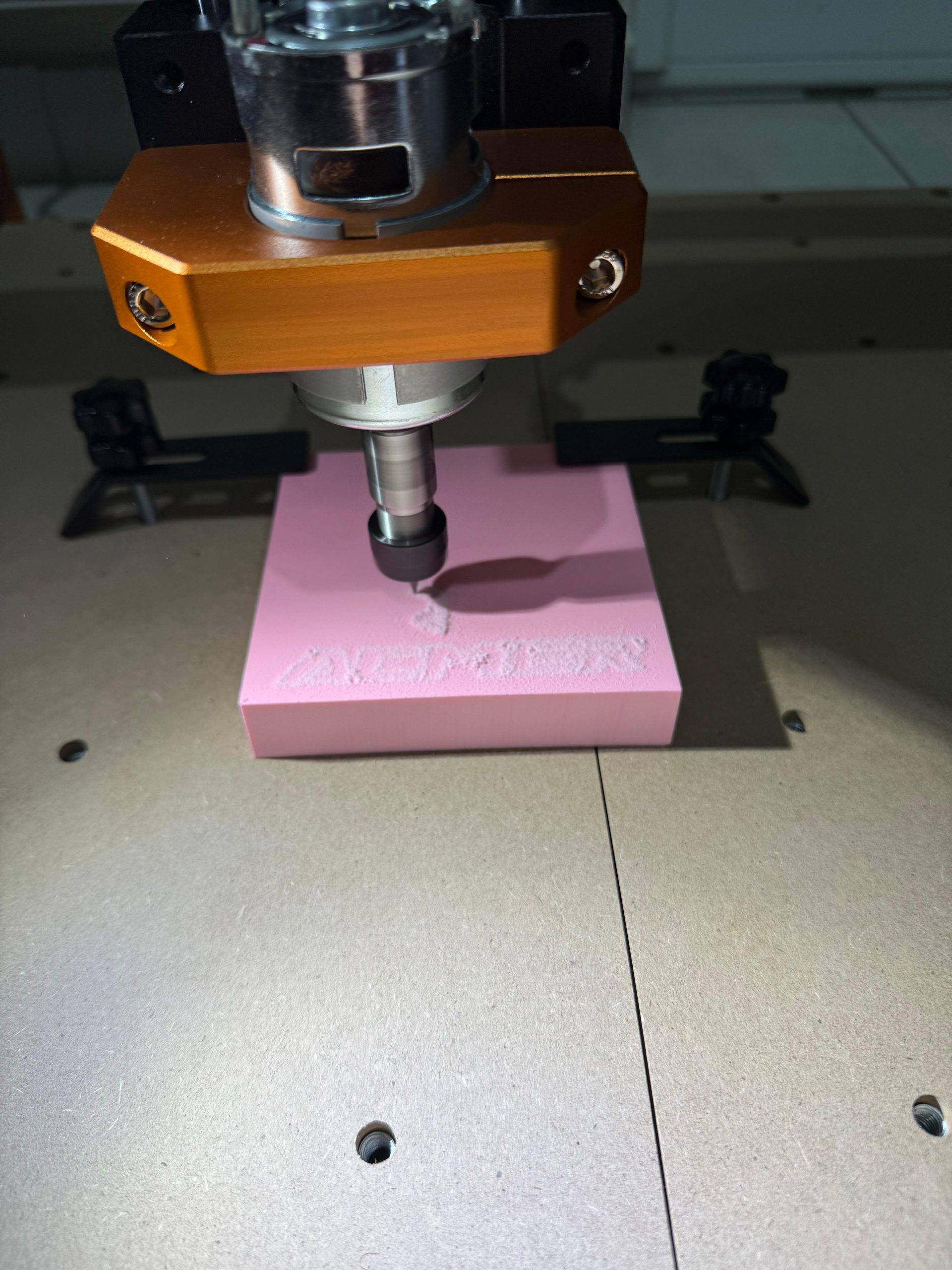

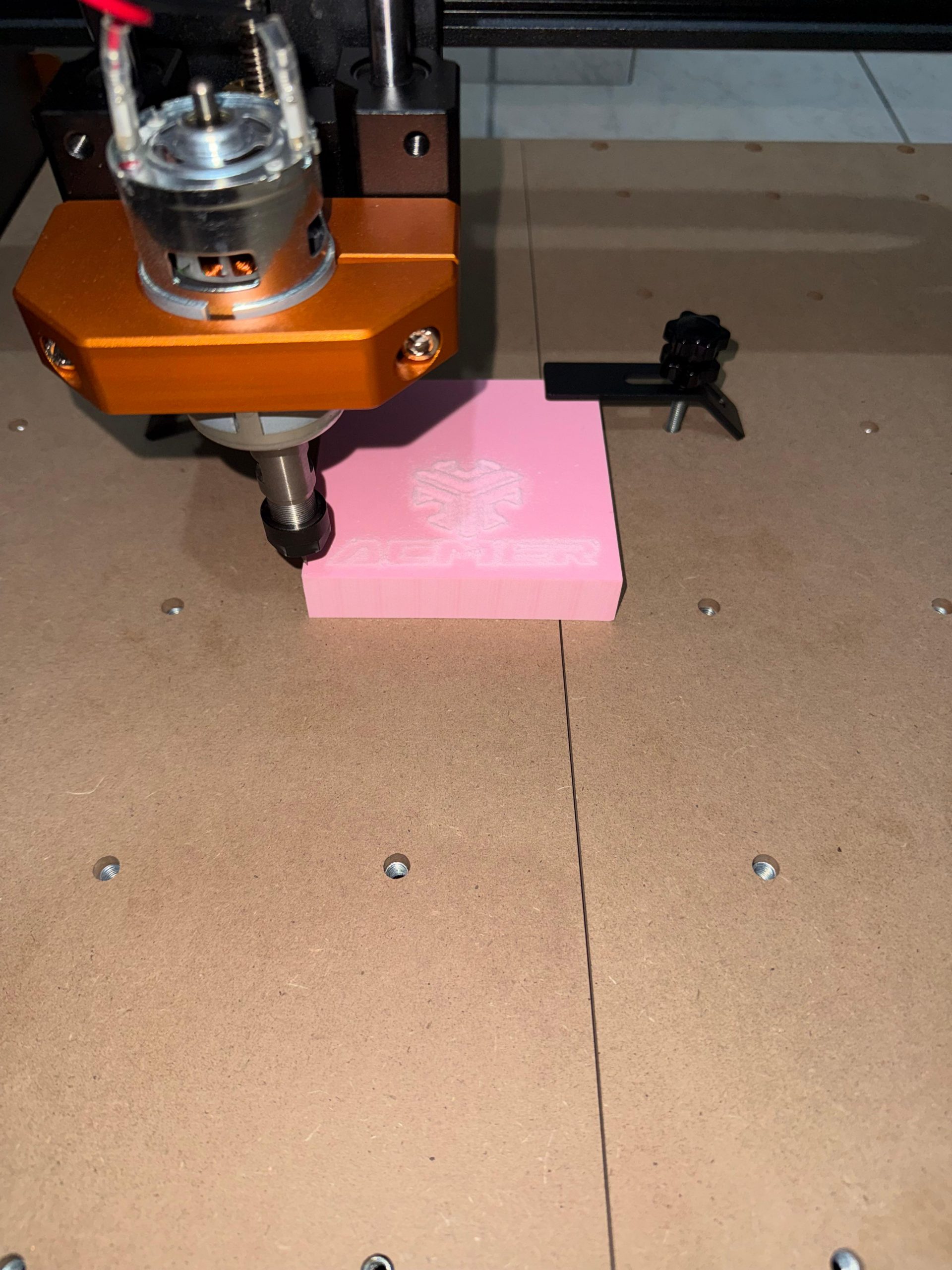

With a rated engraving precision of ±0.1 mm, the ASCARVA 4S performs well for:
-
Detailed wood engraving
-
Acrylic signage
-
Plastic and epoxy board milling
-
Light-duty PCB and model work

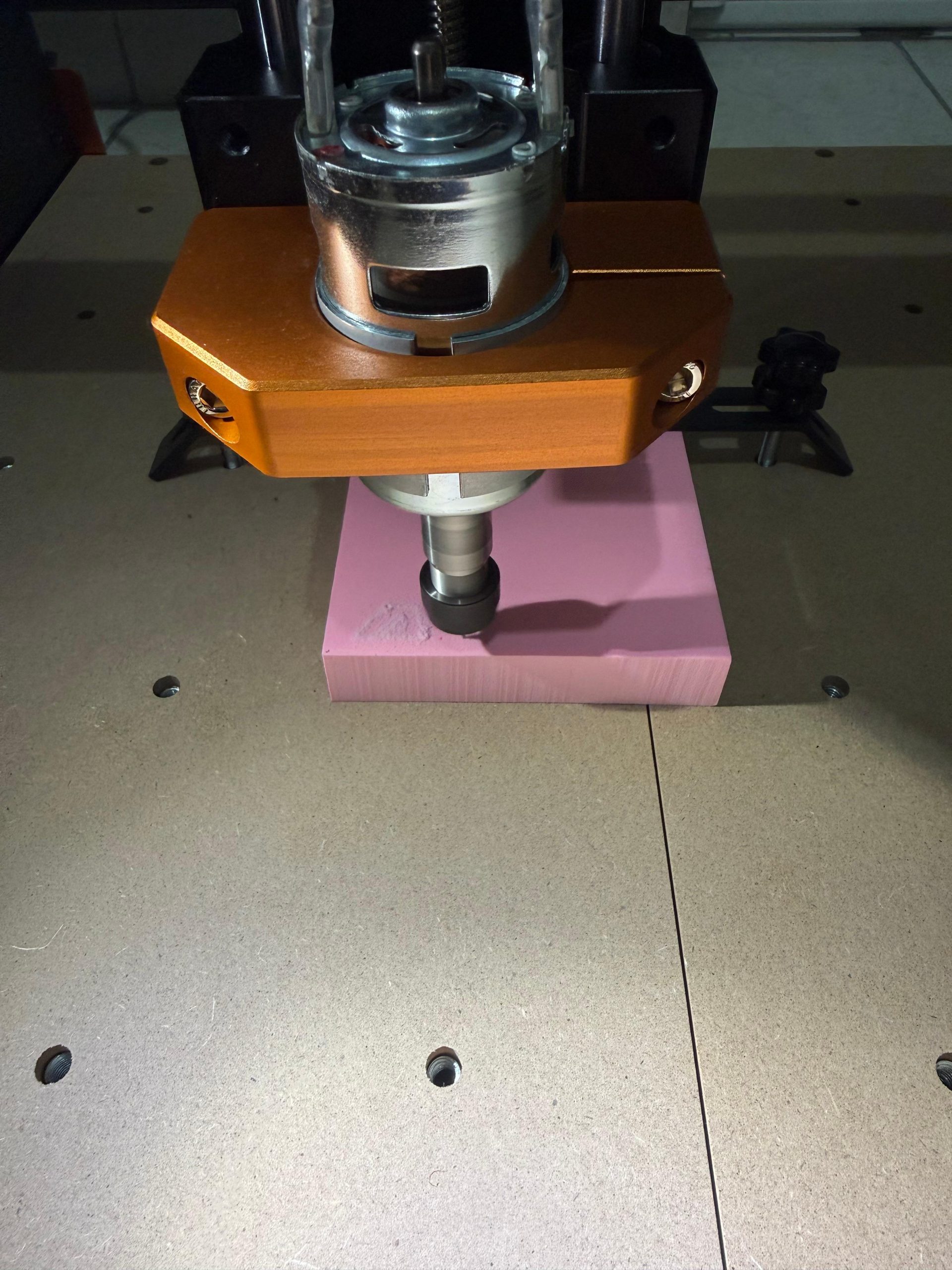

The standard 70W spindle is sufficient for most daily engraving and carving tasks. For users working with harder materials or deeper cuts, the ability to upgrade to a 500W spindle is a major advantage, extending the machine’s lifespan and usefulness as projects become more demanding.
Laser Expansion: More Than Just a CNC
One standout feature is laser module compatibility. The ASCARVA 4S supports 5W and 10W laser heads, transforming it into a hybrid CNC + laser platform.
This opens the door to:
-
Laser engraving on wood and acrylic
-
Light cutting applications
-
DIY crafts and personalized gifts
-
Signage and branding prototypes
For users who want multiple fabrication tools in one footprint, this flexibility adds serious value.
Pros & Cons
Pros
-
Good engraving accuracy (±0.1 mm) for its class
-
Quiet operation thanks to rubber wheel motion system
-
Touchscreen control with multi-language support
-
Pre-assembled design greatly reduces setup time
-
Upgrade path: 500W spindle & laser modules
-
Designed for long, stable working sessions
-
Integrated dust and motor protection
Cons
-
70W spindle may feel limited for heavy milling without upgrading
Final Verdict
The ASCARVA 4S CNC Router Machine from ACMER is a well-balanced desktop CNC designed for accuracy, usability, and future expansion. It’s an excellent choice for makers, DIY enthusiasts, educators, and small workshops looking for a reliable CNC platform that doesn’t overwhelm new users—but still offers room to grow.
If you want a quiet, precise, upgradeable CNC router that can also evolve into a laser engraving system, the ASCARVA 4S is a smart and forward-looking investment.
