The SCULPFUN S30 PRO MAX comes with an air-assist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts. S30 series comes with an advanced high-pressure air-assisted metal nozzle, which can generate 30L/min high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assist.
Adopting ultra-thin laser shaping technology, the laser focus of the S30 series is as thin as hair and very powerful for engraving or cutting. The SCULPFUN S30 PRO MAX 20W pursues the ultimate cutting speed, suitable for professionals, shops, or factories. S30 series laser adopts an innovative replaceable lens; which greatly improves the service life of the laser; which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use; the lens can replace to restore the cutting power.

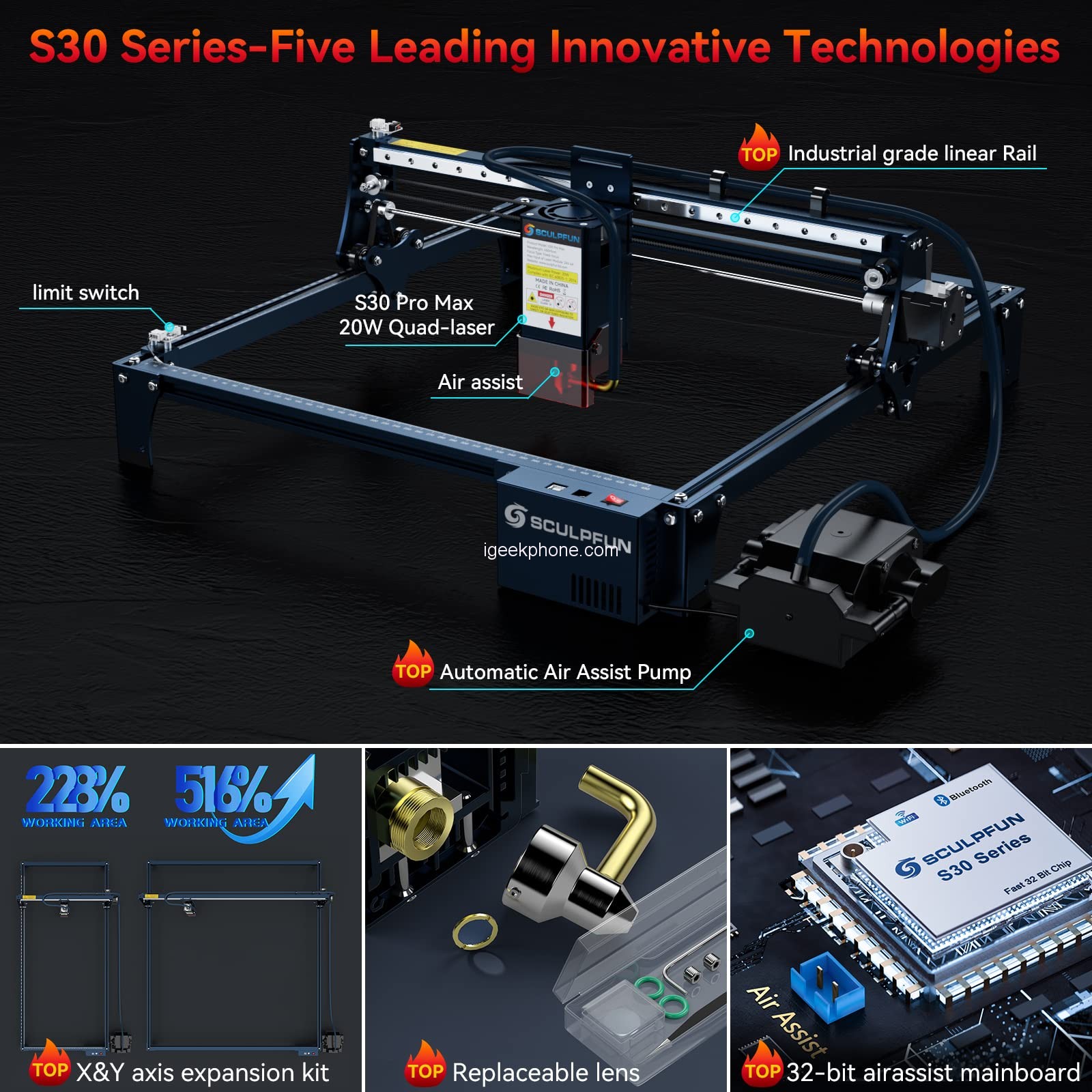

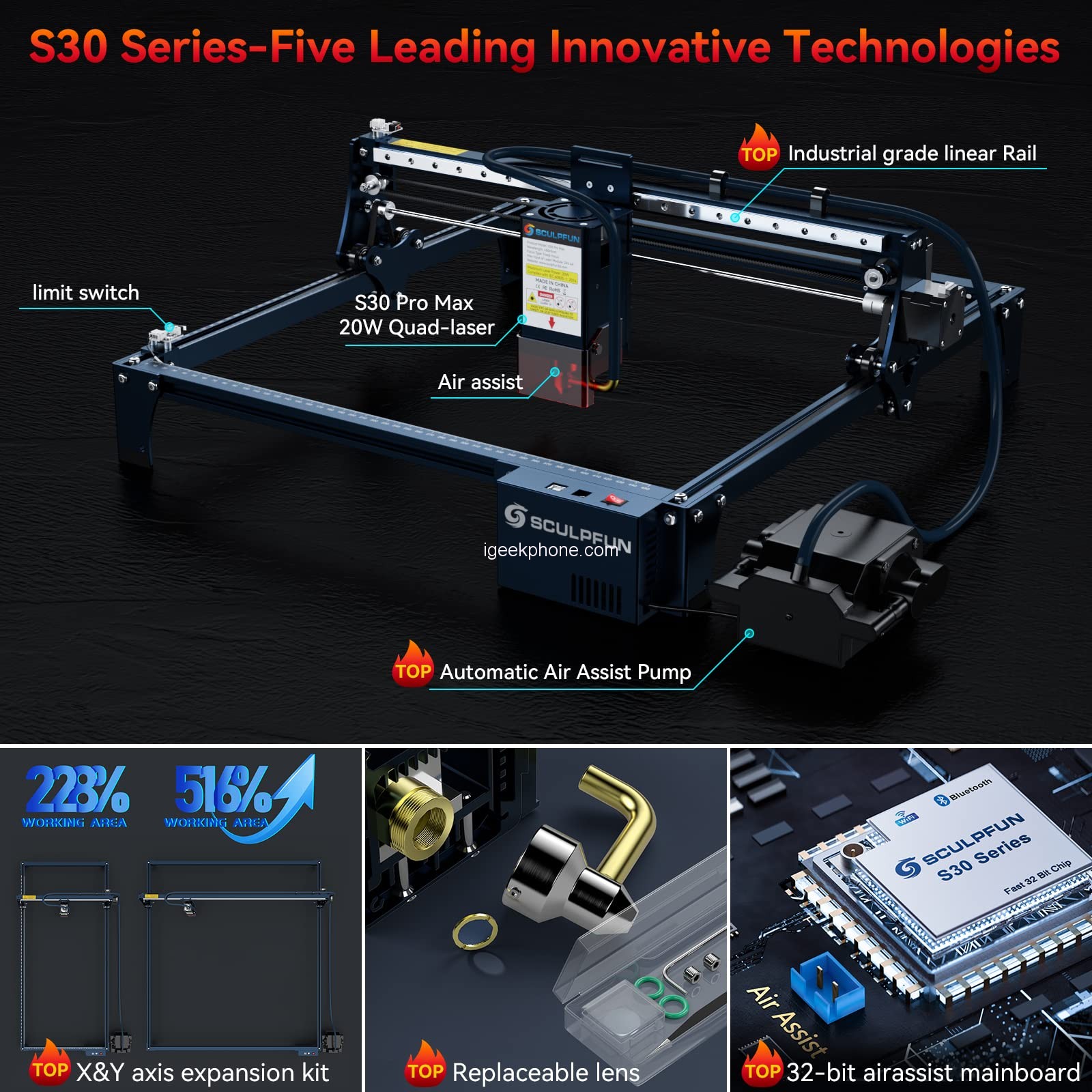

The original engraving area is about 410x400mm, while it features XY-axis expandable design; so you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; purchase an XY-axis expansion kit to upgrade up to 935x905mm engraving area; which can help you better handle large area engraving or cutting work. The latest 32-bit motherboard supports automatic air-assist control and reserves Bluetooth, and an SD card offline printing function. Extremely solid and high-precision linear slide rail X-axis make it reach industrial-grade engraving accuracy. When comparing small engraving details, the SCULPFUN S30 PRO MAX does not have the wavy pattern that appears in ordinary engraving machines.
Made of high-strength aluminum alloy, its frame can bear up to 50KG weight without damage, and is very durable. The frame can be used for a long time and maintain high precision; only need to upgrade the latest laser when the machine needs to be upgraded. The presented A4 size steel pad can well protect the table from laser damage. There is an eye-catching power switch on the machine; you can directly and quickly turn off the power in an emergency. There are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler; which is convenient for you to quickly measure the size of the engraved object. You can buy SCULPFUN S30 PRO MAX from TOMTOP at €781.11 by using Discount Coupon: TFS30PRO with free shipping from the Germany warehouse.
|SCULPFUN S30 Pro Max
|Diode laser output power
|20W (note that this is light energy, not electrical energy)
|fixed focus column + sliding device
|Engraving area size:
|the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm (Upgrade Kit sold separately)
|all kinds of wood (including walnut, cherry, and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
|mainboard-controlled air pump, voltage 24V, flow 30L/min, Air hose inner diameter 7.5mm
|32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately)
|100-240V AC, 50/60HZ Output: 24V 5A
|CE FCC RoHS FDA ICE certification
|Laser protection cover:
|Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
|all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
