igeekphone August 16 news, DJI officially released the first civilian carrier drone DJI FlyCart 30 (hereinafter referred to as FC30), set large load, long range, strong signal, high intelligence in one, suitable for mountain, coastal, rural transport scenes and all kinds of emergency scenarios of material transport.

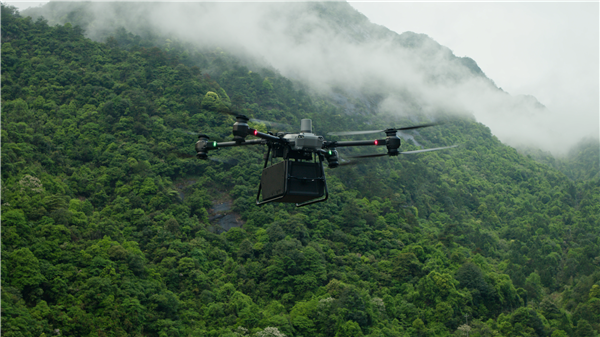

It is reported that the FC30 adopts a 4-axis 8-rotor multi-rotor configuration, with a maximum load weight of 30 kg and a maximum range of 16 km with full load in dual electric mode. The machine has IP55 protection grade and can adapt to the working environment temperature of -20°C to 45°C.
With a maximum altitude of 6000 meters, it has super environmental adaptability and can adapt to all-weather, wide temperature range and cross-altitude operation scenarios.
In addition, it also has two load modes of cargo box and air lift, the cargo box supports quick disassembly and automatic weighing, and the air lift supports intelligent pendulum and emergency fusing functions.
The FC30 features a 4-axis, 8-rotor multi-rotor configuration and a new dual-battery system with a maximum payload of 30 kg in dual-battery mode and 40 kg in single-battery mode. The range covers a maximum of 28 kilometers, and the maximum flight can reach 16 kilometers under the condition of double electric full load. The system is equipped with carbon fiber blades as standard, with a maximum flight speed of 20 m/s.
The FC30 is equipped with a new dual battery system, which supports 20 km O3 image transmission, multi-direction intelligent obstacle avoidance, intelligent multi-alternate landing points, and also supports one plane dual control and standard parachutes, which can ensure maximum safety.
Combined with the DJI Transport Cloud platform and the Pilot 2 APP designed specifically for transport applications, it can provide users with more efficient, economical and safe integrated hardware and software air transport solutions.
It is understood that the FC30 can effectively improve the practical feasibility of drone transport, meet the needs of material transport from mountain, shoreline-based, rural transport and various emergency scenarios, so that more people can enjoy the convenience of drone transport.
“In recent years, DJI industrial-grade drone products have been widely used in many fields such as agriculture, energy, surveying and mapping, and security, and have become an indispensable productivity tool. We are optimistic about the development prospects of air transport and hope to bring more efficient, more economical and safer air transport vehicles to the industry to effectively solve complex terrain and terminal transportation challenges.”
Dji senior corporate strategy director and spokesman Zhang Xiaonan pointed out that based on the actual transportation scenario and function point needs to launch DJI’s first carrier drone, the comprehensive performance and safety will be upgraded to a new height, to meet the transportation needs of ordinary small and medium-sized users to large users.
The FC30 is equipped with DJI O3 image transmission, and the image transmission distance can be up to 20 kilometers, which can meet the needs of long-term transportation beyond visual range. When the image transmission signal is disturbed, the FC30 can be equipped with DJI enhanced image transmission module, connected to the network, to achieve 4G enhanced image transmission, and get a stable and clear picture in all kinds of operating environments.
In addition, the FC30 supports a dual control, and the two pilots can switch the control authority of the UAV with one click, working together to effectively solve the problems of signal occlusion and insufficient cargo delivery accuracy in long-distance transportation, and further improve the coverage distance and accuracy of the operation.
The FC30 has intelligent safety protection measures for the whole process from takeoff to landing, effectively ensuring the safety of people, aircraft and objects.
Before takeoff, the system can evaluate the accessibility according to the task requirements, equipment and flight environment conditions, help users choose the right flight route, and ensure the safety before takeoff through the UAV sound and light prompt and delayed paddling.
During flight, through the front and back rotating active phased array radar and binocular vision system installed on the fuselage, the FC30 can realize multi-directional, all-weather and full-time intelligent obstacle avoidance during flight, so that users can work safely in various scenarios and make the flight more smooth. Built-in ADS-B signal receiver, which can timely warn the surrounding manned aircraft information, so that the flight is more secure.
The UAV is equipped with a built-in parachute as standard, which has the guarantee functions of startup self-test, independent power supply, paddle stop and power off before opening the parachute, sound and light alarm, multi-mode triggering, etc., which can realize low-altitude parachute opening and stable landing, and reduce the risk of personnel and property safety loss under extreme circumstances.
In addition, the FC30 is powered by a dual battery system with multiple redundancy design, which can easily cope with harsh operating environments and maximize flight safety.

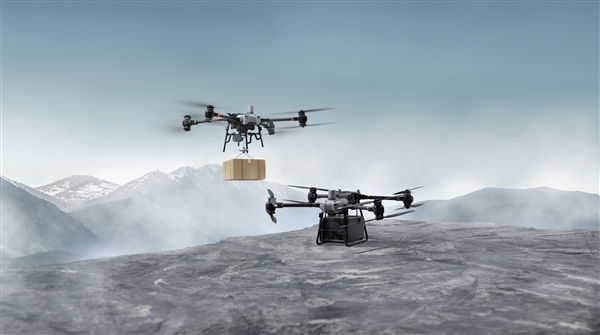

The FC30 also uses a folding storage design, which can reduce the size of the equipment, meet the needs of ordinary vehicles, and increase the convenience of equipment deployment, use and maintenance. Two load modes, cargo box and air-lift system, provide a more flexible and comprehensive solution for different transportation scenarios.

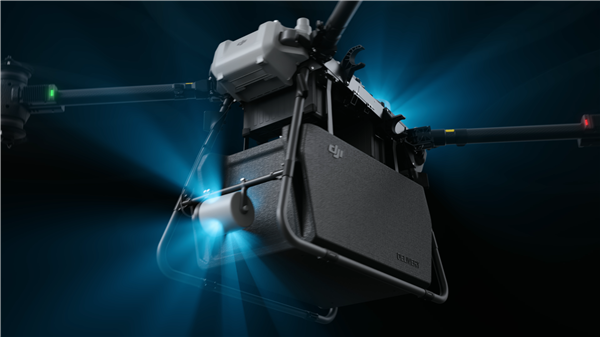

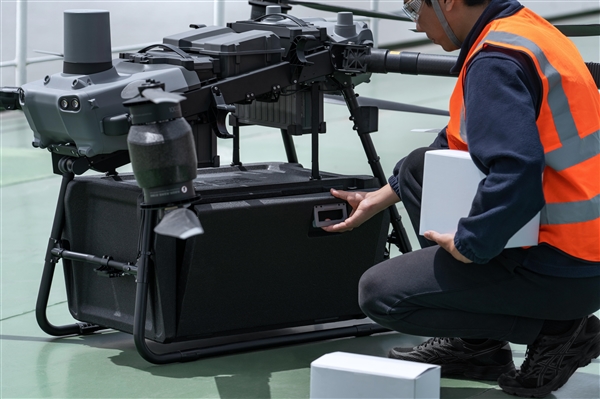

In the load mode of the container, the standard size of the universal EPP container, the maximum volume of 70 liters, can be quickly disassembled within 3 minutes, easy to load and unload. The cargo box supports weight and center of gravity detection to ensure that the cargo is loaded correctly, making the flight safer and more stable.

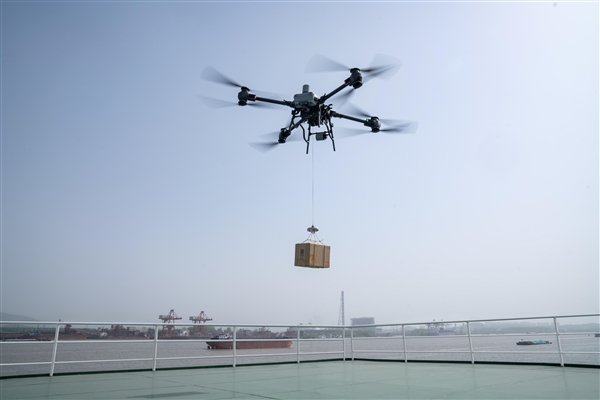

When the transport place is not convenient for the equipment to take off and land, the air crane system can also be used for cargo transportation. The air lifting system has a cable drop mode, supporting both automatic and manual control modes, the maximum retracting weight of 40kg, the maximum release length of 20 meters, and the fastest retracting speed of 0.8 meters/second.
The FC30’s unique intelligent anti-swing practical function can adjust the flight attitude independently, effectively eliminate the swing of the cargo, and ensure the smoothness of the cargo to a greater extent.
The AR projection function helps users quickly select the place to drop the goods, and automatically release the goods when they touch the ground through the one-button release rope, achieving non-contact accurate delivery. In extreme cases, cable fuse protection can ensure the safe disengagement of the drone.
Dji, a new air transport cloud platform created specifically for delivery applications, can easily achieve multi-end efficient collaboration and one-stop management, making delivery management and scheduling simpler and more efficient.
Dji supports complex route mapping, can effectively plan UAV flight paths, and supports remote task creation and planning, which helps to quickly dispatch equipment and reduce manpower investment. In addition, the cloud can display the position, status and flight trajectory of the UAV in real time, combined with the live broadcast of the full HD FPV single-axis pinion camera, more intuitive and comprehensive grasp of the operation status; The system also supports centralized equipment management and multidimensional data statistical analysis, providing powerful data support for adjusting operational planning and continuously improving operational efficiency.
The DJI Pilot 2 APP also features new features and an interactive interface for transport users. Users can intuitively understand the status of the cargo through the DJI Pilot 2, and can intelligently control the air lift system to ensure the safety of the cargo; Real-time terrain elevation profile, rod maintenance and other auxiliary functions can help users to grasp the flight status in real time and effectively alleviate the operation fatigue during flight; Route recording and automatic execution of route functions make shipping operations more efficient.
At the same time, Pilot 2 supports the setting of multiple alternate landing points. In case of extreme weather or other anomalies, the APP will inform the risk in time, automatically select alternate landing points, trigger the aircraft to land, and improve transportation safety.
It is reported that the price of DJI FC 30 standard set is 125,000 yuan, the set is equipped with a carrier drone host (including remote control) and C8000 intelligent charging butler each, DB2000 intelligent flight battery and 16A charger AC cable each two, from today officially launched in mainland China.
The DJI FC30 also offers a number of guaranteed services, which can be enjoyed by purchasing and activating the device in mainland China. Service rights and interests include third party liability insurance for the first year of 600,000 yuan, one-year access to the DJI Cloud platform worth 1,999 yuan for the first purchase, and two-year network RTK service worth 1,800 yuan.
In addition, the care plan protection service for DJI FC30 is online at the same time, the price is 13,999 yuan, and the maintenance guarantee amount of 84,000 yuan is provided for the accident of the UAV such as impact, fall, accidental water, etc., which includes 76,500 yuan basic quota, and 7,500 yuan consumable parts quota, without deductibles, and unlimited free maintenance services can be enjoy within the quota.
