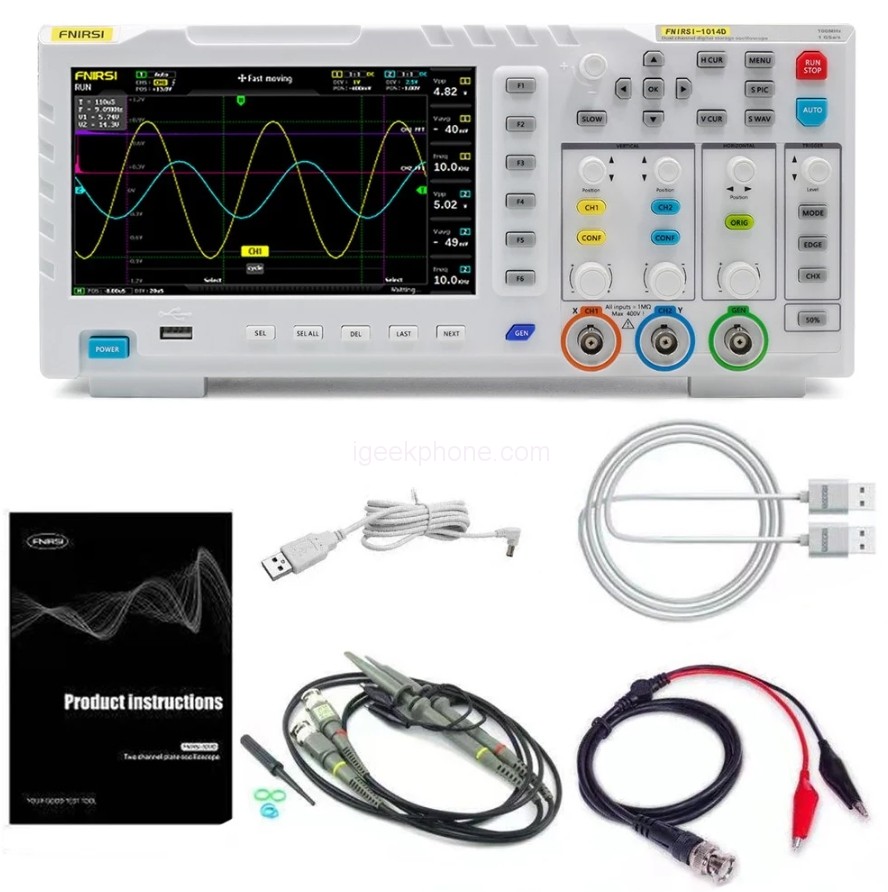

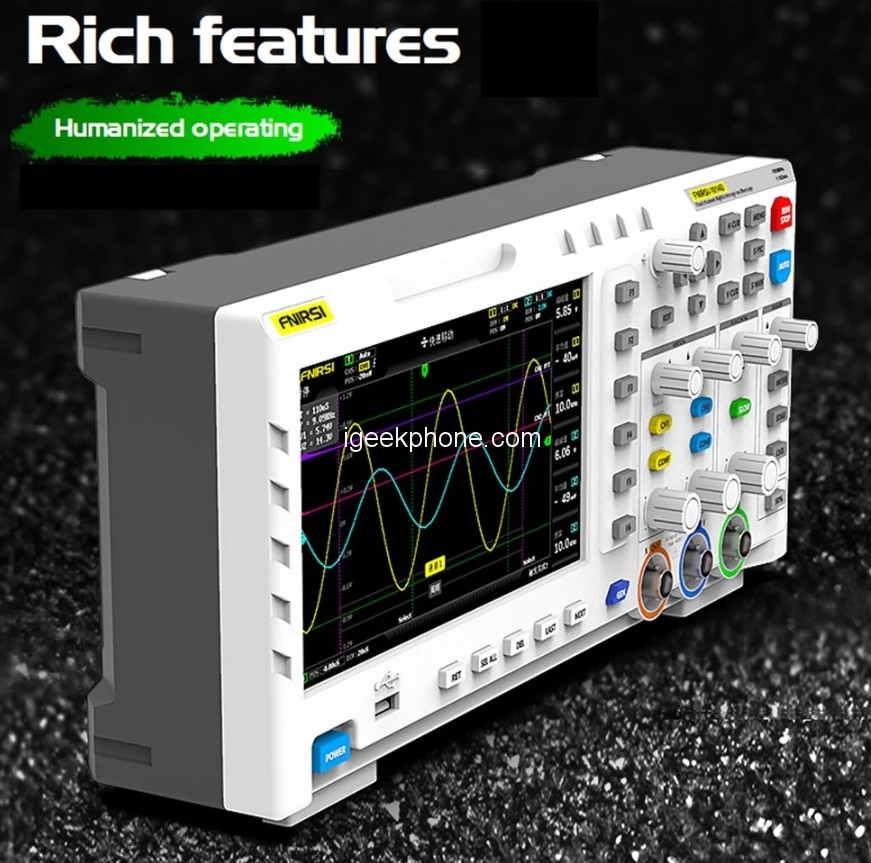

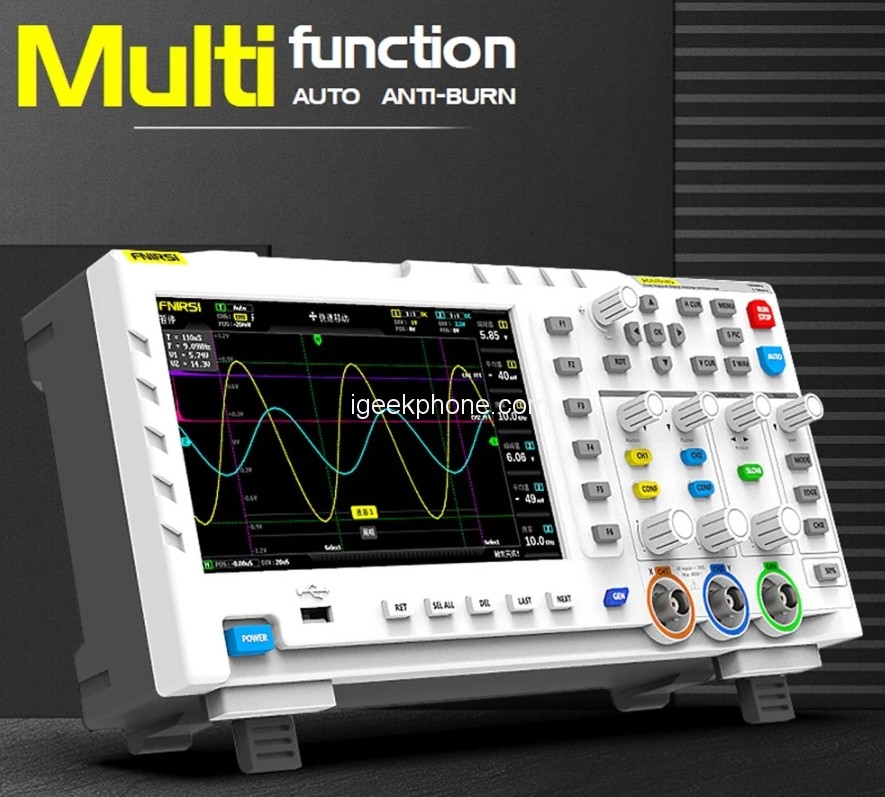

FNIRSI-1014D is a two in one oscilloscope and signal generator launched by FNIRSI. It has comprehensive functions and high practicability. It is a cost-effective dual channel desktop oscilloscope for the maintenance industry and R & D industry. FNIRSI-1014D is a 100 MHz bandwidth dual-channel oscilloscope with a built-in waveform generator. The oscilloscope features a high real-time sampling rate of 1 GS/s, 240 kB memory, a large 7-inch display with 800 × 480 resolution, and advanced features for capturing, analyzing, and recording measurement results.
Besides, the device features high voltage protection, which ensures safe operation with signals up to 400 V. Built-in generator generates 14 types of signals, voltage resolution is 8 bit, voltage 5 Vpeak-peak. FNIRSI-1014D is comes with a USB interface to connect to the computer. This oscilloscope is designed for diagnostics and tuning of radio and electronic equipment. The fuselage is equipped with USB interface, which can be connected with the computer to realize the sharing of its own screen capture pictures and the computer, which is convenient for secondary analysis; Li Shayu’s graphic display function can be used to compare and judge the amplitude, frequency and phase of two groups of signals; FFT viewing function can estimate the harmonic component of signals; Li Shayu’s graphic display function can be used to compare and judge the amplitude, frequency and phase of two groups of signals.
The FNIRSI-1014D Portable Desktop Oscilloscope has a real-time sampling rate of 1GSa / s and 100MHz* 2 analog bandwidth; complete trigger function (single time / normal / automatic); both for periodic analog signal and aperiodic digital signal can use freely; built in DDS function signal generator and the industry’s original chopping output (@ 2.5vpp), all signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable chopping signal, chopping the output device intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customizes cut-off signals; the built-in high-voltage protection module can tolerate up to 400V continuous voltage, without worrying about the oscilloscope burning accident caused by the probe not moving to 10x gear.
Large time base scrolling mode, which can monitor slow level changes; FNIRSI-1014D Portable Desktop Oscilloscope equipped with efficient one button auto, which can display the measured waveform without tedious adjustment; display high-definition LCD with 7-inch 800 * 480 resolution; cursor measurement function, when manually reading amplitude and frequency parameters; it does not need to read the background scale unit and quantity, and it does not need to convert to directly get peak to peak and frequency extremely convenient screen capture and waveform storage function, built-in 1GB storage space; can store up to 1000 screen capture pictures + 1000 groups of waveform data.
The storage process is simple and fast, save the current waveform with only one click; no cumbersome prompts and choices to save the current data, very convenient; powerful waveform image manager, support thumbnail browsing, view, view details; The functions of page turning, deleting and waveform enlarging; reducing and moving are convenient for secondary analysis. You can buy FNIRSI-1014D Portable Desktop Oscilloscope from CAFAGO at €147.39 with duty-free shipping from Germany Warehouse.
