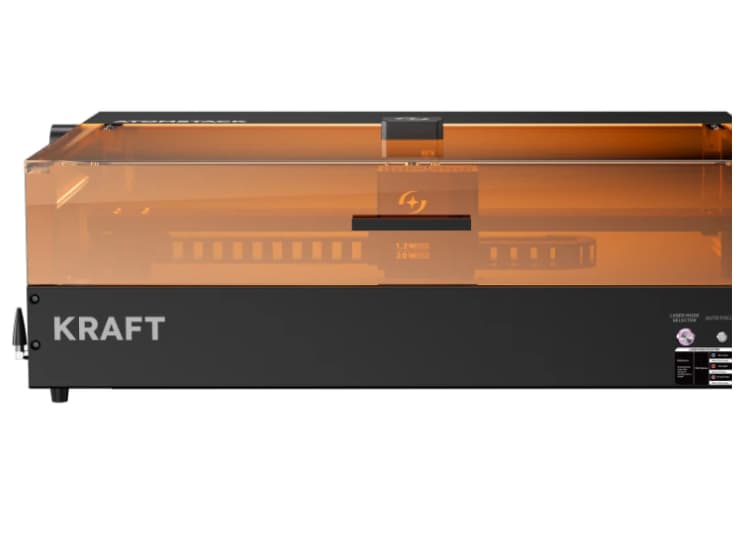

ATOMSTACK Kraft 20W Dual Laser Review: Democratizing Metal Engraving? A Game-Changing Hybrid Machine

The desktop laser engraving market has exploded, but one barrier remained stubbornly high: affordable, high-quality engraving on bare metals. Enter the ATOMSTACK Kraft 20W Dual Laser Engraving Machine. This isn’t just an incremental upgrade; it’s a potential paradigm shift, combining a powerful 10W 455nm blue diode laser with a dedicated 1.2W 1064nm IR fiber laser in one compact unit. Promising the ability to mark metals like stainless steel, titanium, and aluminum without coatings, alongside superior engraving on wood, acrylic, leather, and more, the Kraft 20W aims to be the ultimate versatile desktop workhorse. But does it deliver on this ambitious promise?

Specifications

1. Laser power: blue laser: 20W, 1064 infrared laser: 1.2W

2. infrared and blue lasers work together: there is no need to change the laser head.

3. Infrared additional components: No need (built-in, no need to buy separately)

4. Cutting capacity: 10mm wood 5mm black acrylic can be finished at one time.

5. Cutable materials: wood, paper, MDF, felt cloth, carton denim, dark opaque acrylic.

6. Engraving materials: blue laser: wood, leather, denim, ceramics, MDF, alumina, dark opaque acrylic, dark glass, kraft paper, painted metal, brushed stainless steel, rock, PCB board, paper, bamboo, fabric, jade, marble, shale and brick.

7. Infrared laser: all metals (gold, silver, brass, iron, aluminum, stainless steel, etc.), plastics, dark opaque acrylic. (No need to purchase IR module separately)

8. autofocus: yes

9. HD camera preview: Yes.

10. Machine size Machine size: 791 x 610 x 261.5 mm (31.14 inches x 24.02 inches x 10.28 inches)

11. Base with riser: 791 x 610 x 365 mm (31.14 inches x 24.02 inches x 14.37 inches)

12. Work area: 19.6 inches x 12.6 inches (500*320 mm)

13. Work area with automatic conveyor feeder: 19.6 inches x 31.5 inches (500 x 800 mm)

14. Gross weight: 38kg

15. Net weight: 23.6 kg

16. Working speed: 600 mm/s

17. Spot size: 1064nm infrared laser: 0.03 * 0.03 mm.

18. Blue laser: 0.08*0.12mm

19. Output voltage: 24V 9A

20. Connection mode: USB/Wi-Fi interface.

21. Support XCS system: mobile phones Android and iOS.

22. Tablet computer: iPad

23. Computer: Windows 10 or higher and Macintosh Operating System.

24. Free software: AtomStack Studio | Light Burning

25. Supporting files: DXF/JPG/JPEG/PNG/BMP/SVG/GIF.

The Core Revolution: Dual Lasers, Unlimited Materials

This is the Kraft’s defining feature and what sets it apart from almost all competitors in its price class:

1. 10W 455nm Blue Diode Laser (Visible Light):

   • The Workhorse: Excels at engraving and cutting organic materials (wood, leather, acrylic, rubber, cardboard, fabric, stone coatings, anodized aluminum) and painted/coated metals.

   • High Power & Speed: 20W peak optical output enables faster engraving and deeper cutting on compatible materials than lower-wattage diodes.

   • Focus Adjustability: Allows for fine detail engraving or deeper cuts.

2. 1.2W 1064nm IR Fiber Laser (Invisible Light):

   • The Metal Master: This is the key innovation. The 1064nm infrared wavelength is absorbed by the surface electrons of bare metals (stainless steel, titanium, aluminum, brass, copper, etc.), causing localized heating and oxidation that creates a permanent, high-contrast mark without needing any spray coatings.

   • Precision Marking: Ideal for serial numbers, logos, barcodes, and intricate designs directly onto metal tools, parts, jewelry, knives, lighters, and electronics.

   • Fine Detail: The IR spot size is often smaller than the blue diode, enabling extremely fine details on metal.


Key Performance & Specifications

• Engraving Speed: Up to 600mm/s (highly material and power dependent).

• Engraving Area: A versatile 410 x 400mm (approx. 16″ x 15.7″).

• Precision: 0.01mm minimum line width (IR laser excels here).

• Software Compatibility: Works with industry-standard LightBurn (highly recommended for full control) and LaserGRBL.

• Connectivity: USB, Wi-Fi (common for ATOMSTACK).

• Safety Features: Includes air assist nozzle (critical for clean cuts and preventing flame), emergency stop, and requires proper user-provided ventilation and laser safety goggles (MUST for both wavelengths).

Who is the Kraft 20W Dual Laser For? (Target Audience)

1. Makers & Hobbyists: Wanting to expand into metal marking without industrial machine prices or complex setups.

2. Small Businesses & Startups: Jewelers, knife makers, tool manufacturers, pet tag creators, promotional product suppliers needing direct metal marking capabilities.

3. Techs & Engineers: For labeling tools, prototypes, and equipment.

4. Existing Diode Laser Users: Looking to massively upgrade material capabilities, especially for metal, without replacing their entire setup.

5. Versatility Seekers: Those needing one machine to handle both organic materials and bare metals proficiently.

Potential Advantages: Why It’s Compelling

• True Bare Metal Engraving: The #1 advantage. Eliminates the messy, inconsistent, and often toxic coating process required for metals with standard diode lasers.

• Unmatched Material Versatility: Seamlessly switch between wood/acrylic/leather (blue laser) and stainless/alu/titanium (IR laser) in one job if needed.

• High Value Proposition: Significantly cheaper than dedicated fiber laser markers of similar marking capability, while adding powerful diode functionality.

• Desktop Form Factor: Relatively compact compared to industrial fiber lasers.

• LightBurn Compatibility: Professional-grade control and ease of use.

• ATOMSTACK Ecosystem: Generally good build quality, community support, and parts availability for the brand.

Key Considerations & Limitations (Crucial to Understand)

• IR Laser Power (1.2W): This is marking/engraving only, NOT cutting. It creates surface marks, anneals, or oxidizes metal; it won’t cut through it. Depth on metal is shallow.

• Metal Marking Speed: Engraving metal with IR is slower than engraving wood with the blue laser. Patience is needed for larger metal areas.

• Metal Type & Finish Matters: Results vary significantly. Darkened/oxidized metals (like black anodized aluminum) show high contrast. Polished stainless or bare aluminum might produce lower-contrast, greyer marks. Test settings!

• Not an Industrial Fiber Laser: While revolutionary for desktops, don’t expect the speed, depth, or durability of marking from a 20W, 50W, or 100W+ dedicated fiber laser system costing thousands more.

• Safety is Paramount: INVISIBLE IR LASER RADIATION! You MUST use appropriate laser safety goggles (OD6+ for 1064nm) whenever the machine is operating. Proper fume extraction is non-negotiable, especially for metals and plastics.

• Learning Curve: Optimizing settings (power, speed, frequency/pulse settings for IR) for different metals requires experimentation. LightBurn proficiency is beneficial.

• Air Assist Essential: Crucial for clean metal marks and preventing debris/melting on the lens, especially with the IR laser.

The Verdict: A Landmark Machine for Desktop Fabrication

The ATOMSTACK Kraft 20W Dual Laser isn’t just another engraver; it’s a potential game-changer. By integrating a functional IR fiber laser module alongside a powerful blue diode laser, it shatters the barrier to entry for high-quality, coating-free metal marking on the desktop. Its ability to handle such a vast array of materials – from intricate wood inlays to permanent serial numbers on stainless steel – in one affordable package is genuinely impressive.

Is it perfect? No. The 1.2W IR laser has speed and depth limitations inherent to its power class. Mastering metal settings takes effort, and safety demands utmost respect. However, the sheer convenience and capability it unlocks are transformative.

Buy it if:

• Engraving bare metals (not cutting) is a core need you couldn’t affordably meet before.

• You demand maximum material versatility from a single desktop machine.

• You understand and commit to rigorous laser safety protocols.

• You’re willing to invest time in learning and testing settings.

Consider alternatives (dedicated diode or higher-power fiber) if:

• Your primary need is cutting thick metal (this won’t do it).

• You require industrial-grade speed and depth on metal for high-volume production.

• You cannot strictly adhere to safety requirements.


The Bottom Line:

The ATOMSTACK Kraft 20W Dual Laser successfully bridges a critical gap in the desktop laser market. It delivers on the promise of accessible bare metal engraving alongside excellent performance on traditional materials. For makers, small businesses, and hobbyists ready to unlock metal, it represents a significant leap forward and offers exceptional value. Just remember: with great power (and wavelength versatility) comes great responsibility – prioritize safety above all else.
