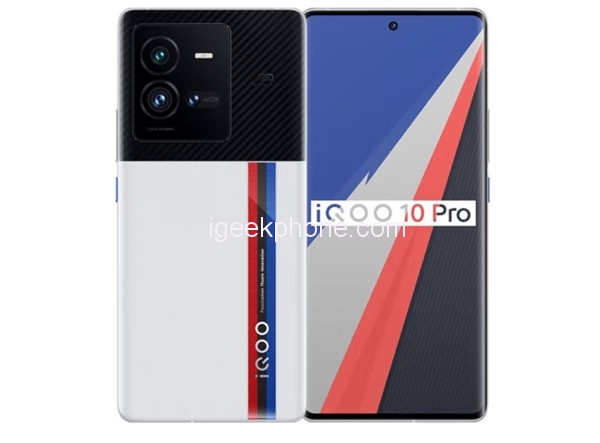

The iQOO 10 Pro has just been released. The machine is equipped with a wealth of configurations, and they are all of the industry-leading standards, such as the first-generation Snapdragon 8+ flagship chip, the self-developed chip V1+, etc., ultrasonic 3D wide-area fingerprints, etc.
But for most people, the biggest highlight of iQOO 10 is the first mass production of 200W ultra-fast flash charging. This technology not only refreshes the industry’s charging rate record but also greatly improves charging heat control and charging head volume. The overall charging experience is excellent.
So how good is the experience of 200W ultra-fast flash charging? Let’s test it out with you today.
How to achieve 200W flash charging?
Although it seems that the number is only increased, it is not easy to achieve 200W flash charging. It requires the joint action of chargers, charging cables, charging ICs, and other aspects to achieve the effect of ultra-fast flash charging.
The iQOO 10 Pro uses a new 200W gallium nitride mini charger. The charging head uses the latest semiconductor material gallium nitride, which is already the top specification in the included charging head. On the one hand, this material greatly reduces the volume of the charging head, and on the other hand, it can improve the heat dissipation effect, making the charging experience perfect.
In terms of charging cable, iQOO 10 Pro adopts a new charging cable with stronger overcurrent capability. The number of positive and negative copper wires is directly increased by 25%, which can easily carry a large current of 10A, so the charging efficiency is very high.
The most critical technology appears on the charging IC. There is a main and sub-board design inside the fuselage. The main board is equipped with 2 half-voltage ICs, and the sub-class is equipped with 1 half-voltage IC, which together form a three-core charging IC solution. Each half-voltage IC can carry 100W power, so it is not even a full load when working at 200W power, ensuring the stable operation of mobile phone flash charging.
In terms of battery, iQOO 10 Pro also has new technology. It adopts a new 10C battery system, which directly increases the charging capacity of the previous generation’s 6C system by 166%. It can also allow a single battery to carry an input current of up to 20A. It can be said that it is 200W. An important cornerstone of flash charging technology.
To ensure the maximum speed of 200W flash charging, iQOO 10 Pro uses a battery technology comparable to “vehicle-grade”, and adopts new materials for electrolyte ratio, diaphragm material, positive electrode element, negative electrode material, etc. The electrode preparation process has reached the thinnest level in the industry, and the thickness control has been significantly improved.
Is 200W flash charging safe?
In addition to charging efficiency, many people are concerned about the safety of 200W flash charging. After all, the wattage is getting bigger and bigger, and the hidden risks are getting bigger and bigger. You can use it with confidence because iQOO thinks more than users.
For fast charging, the biggest cause of accidents is often due to heat, and heat can also lead to problems such as charging efficiency and battery life reduction. It is the primary problem that needs to be solved for flash charging. For this problem, iQOO 10 Pro uses reduced impedance. , strengthen heat dissipation, and other means.
With these advanced technologies, iQOO has undergone several rigorous experiments and successfully passed the Rheinland certification test, which is enough to see how safe 200W flash charging is.
What is the experience of 200W flash charging?

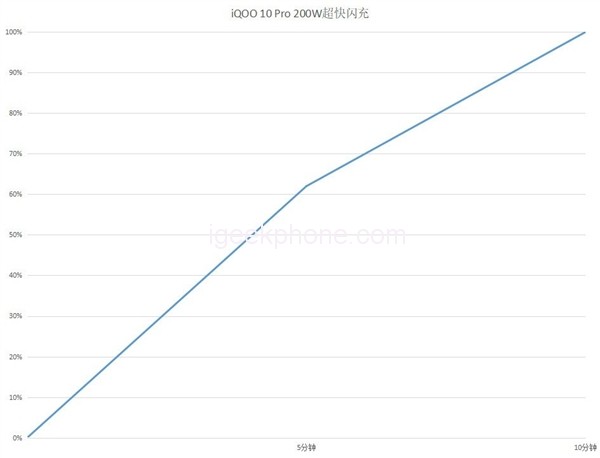

Having said so much, whether it is a mule or a horse, I have to take it out to see it and go directly to the charging test. We started charging the phone with zero power and started timing at the same time. We can see that the iQOO 10 Pro charged 62% of the power in 5 minutes, and it took only 10 minutes to fully charge.
And the heat is not obvious during the charging process, the use of the screen does not reach the level of hot hands, and the experience of playing while charging is better.
In addition, the author also found that the iQOO 10 Pro has two different charging modes, and can freely choose between “fast” and “ultra-fast” modes according to the usage environment, which will not hurt the phone.
From the technical discussion to the actual charging measurement, it can be seen that the 200W flash charge of the iQOO 10 Pro is indeed a breakthrough in the industry. For users with “battery anxiety”, the iQOO 10 Pro that can quickly restore blood is the best choice.
