LYZRC XiL 017S rc quadcopter is built around an interesting balance: it tries to remain small and travel-friendly while offering several features normally associated with more expensive camera drones. At just 247g with its battery, the foldable quadcopter combines GPS positioning, 5G Wi-Fi FPV, a 4K camera, a 3-axis mechanical gimbal, brushless motors, and several automated flight modes.
That combination makes the XiL 017S more interesting than a basic toy drone, especially for buyers comparing GPS camera drones for travel, photography, and casual outdoor flying. It is aimed at users who want stabilized aerial footage and assisted flight functions without moving into a much larger professional drone setup.
According to the listed specifications, the drone measures 150 × 90 × 60mm when folded and expands to 410 × 410 × 60mm in flight. It also uses a 7.4V 1500mAh LiPo battery and is rated for approximately 20 minutes of flight time.
Small Enough to Travel With

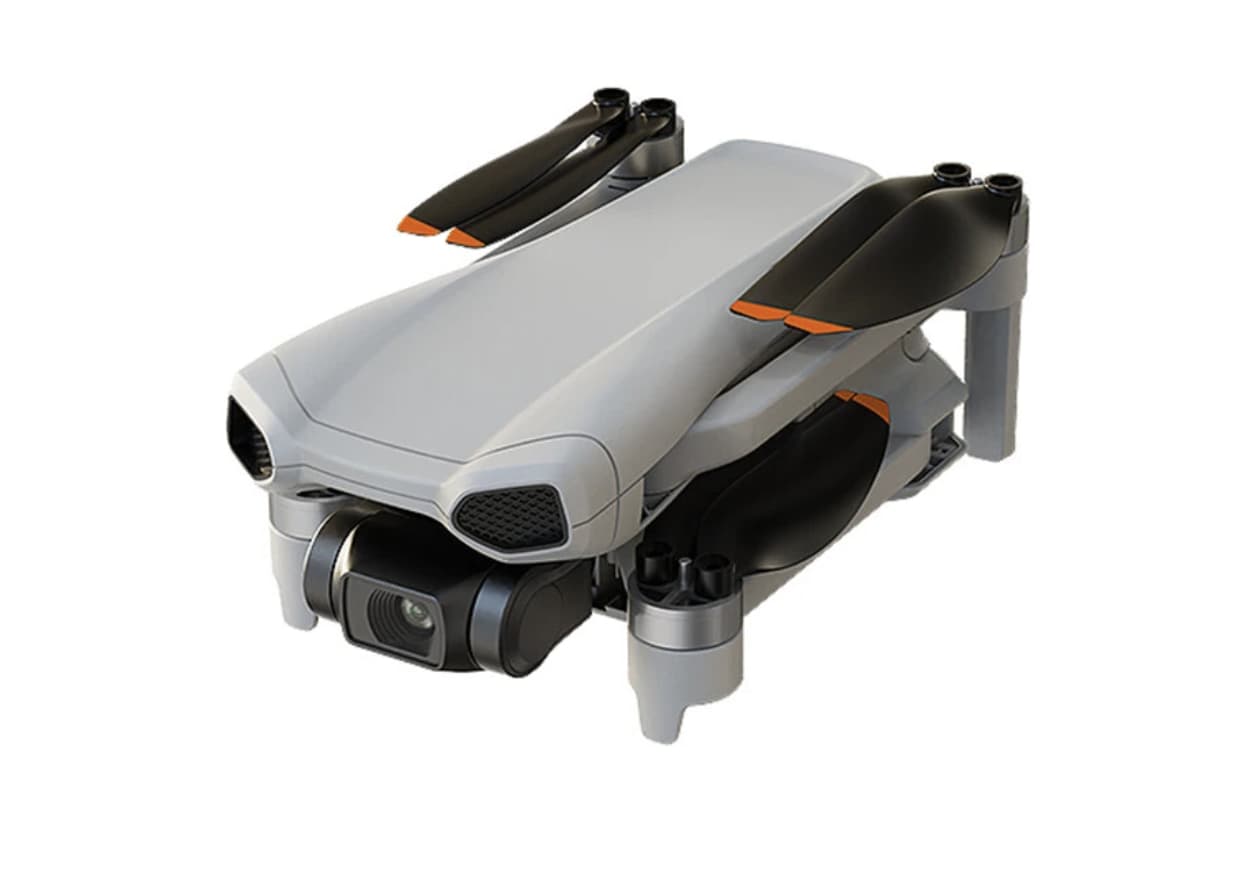

The most practical advantage of the XiL 017S is its folding design.
The arms fold inward, reducing the drone to a compact 150 × 90 × 60mm package. That makes it considerably easier to put into a backpack or carry case than a full-size camera drone. Once unfolded, the aircraft has a 410 × 410mm footprint, giving the motors and propellers enough room to operate away from the central body.
Its 247g takeoff weight is also worth highlighting. This figure includes the 82g battery, so the advertised weight represents the drone in its ready-to-fly configuration rather than an empty airframe.
For travelers and casual aerial photographers, this combination of low weight and folding construction could be more useful than simply chasing maximum motor power.
4K Camera Meets a 3-Axis Mechanical Gimbal
The camera system is where the XiL 017S moves beyond the most basic entry-level drones.
The aircraft supports 3840 × 2160 video and still-image resolution when recording through the drone’s onboard storage setup. It also uses an F2.4 lens and provides a remotely adjustable camera angle of up to 90 degrees.
More importantly, the camera is mounted on a 3-axis mechanical self-stabilizing gimbal.
This matters because a drone camera is constantly exposed to small movements caused by motors, wind, acceleration, and changes in direction. A mechanical gimbal can physically compensate for those movements, helping keep the camera pointed in a more consistent direction.
The XiL 017S also combines its mechanical stabilization with EIS, giving the camera system two different approaches to reducing unwanted movement. The result should be more useful for people who want smooth aerial clips rather than simply taking occasional snapshots.
The camera’s maximum listed frame rate is 20fps at the specified 4K resolution, so buyers should not expect the same high-frame-rate 4K recording capability found on premium camera drones.
GPS Changes the Flying Experience
GPS is arguably more important to this drone than the 4K label.
A basic toy quadcopter can require constant stick input to maintain its position. The XiL 017S instead combines GPS positioning with optical-flow positioning, allowing the aircraft to use different positioning methods to improve hovering and flight stability.
That becomes particularly useful for beginners.
If you release the controls, a GPS-equipped drone can use its positioning system to maintain its approximate location rather than immediately drifting away. Optical-flow positioning can further assist with maintaining a fixed position in appropriate conditions.
The drone is also specified with a maximum control distance of about 1,000 meters and a listed flying height of 120 meters. Actual operating distance and flight behavior will depend on the environment, radio interference, local regulations, weather, and other conditions.
Automated Flight Modes Add More Than Convenience
The XiL 017S includes several automated functions that make it more than a manually controlled quadcopter.
Follow Me allows the aircraft to track the connected controlling phone and follow the operator. This can be useful for walking, cycling, outdoor activities, or simply recording yourself without having another person operate the drone.
The Surround function provides an orbit-style perspective by allowing the drone to fly around a subject.
There is also a Waypoint Flight mode. Instead of continuously controlling the aircraft, the user can draw a route on the screen and have the drone follow the selected path.
These functions are particularly attractive to beginners because they can reduce the amount of manual stick control required while creating more varied footage.
However, automated flight should not be treated as a replacement for pilot awareness. GPS reception, obstacles, wind, battery level, and the surrounding environment can all affect how a drone behaves.
Brushless Motors for More Confident Outdoor Flying
The XiL 017S uses 1503 brushless motors rather than conventional brushed motors. Brushless motors are generally preferred for drones because they can offer better efficiency, durability, and sustained performance.
That is important for a drone equipped with a mechanical gimbal and relatively large folding frame.
The aircraft uses a 6-axis gyro and a 4-channel control system, while the remote operates in Mode 2 with the throttle on the left side.
This configuration should feel familiar to people who have already used conventional RC aircraft.
About 20 Minutes of Flight Time
The included battery is a 7.4V 1500mAh LiPo pack, and the listed flight time is approximately 20 minutes. Charging takes around 90 minutes according to the product specifications.
A claimed 20-minute flight time is reasonable for a compact GPS camera drone, but buyers should distinguish between a laboratory-style maximum and practical flight time.
Wind, repeated acceleration, GPS-assisted hovering, camera use, temperature, and battery condition can all influence real-world endurance.
For longer outdoor sessions, choosing a version with two batteries could make more sense than expecting the drone to remain airborne continuously.
5G Wi-Fi FPV and App-Based Control
The XiL 017S uses 5G Wi-Fi for FPV transmission and supports real-time image transmission to a connected mobile device. The listed FPV distance is around 1,000 meters, although real-world wireless performance can vary significantly depending on obstacles, interference, phone compatibility, and local conditions.
The system supports iOS 8.0 or later and Android 4.4.4 or later according to the listed specifications.
One useful distinction is that “5G Wi-Fi” here refers to the drone’s wireless transmission technology, not 5G cellular connectivity. Users do not need a mobile 5G network connection to operate the FPV system.
What Makes the XiL 017S Interesting?
The individual specifications are not necessarily the main attraction. It is the combination that makes the XiL 017S stand out.
You get:
- A 247g takeoff weight
- Foldable construction
- 1503 brushless motors
- GPS positioning
- Optical-flow positioning
- 4K video capability
- 3-axis mechanical stabilization
- EIS
- 5G Wi-Fi FPV
- Around 1,000m listed control distance
- Follow Me
- Surround/orbit flight
- Waypoint flight
- Approximately 20 minutes of advertised flight time
Few of these features are unusual individually. Together, however, they create a much more capable package than a basic beginner quadcopter.
Who Should Consider the LYZRC XiL 017S?
The XiL 017S makes the most sense for someone who wants to explore aerial photography without immediately buying a premium drone, particularly those looking for a beginner-friendly RC drone with GPS-assisted flight.
It is particularly appealing to:
Beginner pilots: GPS, optical-flow positioning, automated flight modes, and a stabilized camera can make the learning curve less intimidating.
Travel users: The folding frame and 247g weight make portability a major part of the product’s appeal.
Casual content creators: 4K recording, adjustable camera positioning, EIS, and a 3-axis mechanical gimbal provide a more serious imaging setup than a typical toy drone.
RC enthusiasts: Brushless motors, GPS flight, waypoint navigation, and manual control provide room to explore beyond simple hovering and directional flight.
On the other hand, professional aerial photographers should keep expectations realistic. The XiL 017S does not replace a premium camera drone with a larger image sensor, advanced obstacle avoidance, sophisticated transmission hardware, and professional-grade imaging controls.
LYZRC XiL 017S: The Bottom Line
LYZRC XiL 017S is an example of how the affordable drone market has moved beyond basic remote-controlled quadcopters.
Its strongest selling point is not simply the 4K camera or the GPS system. Instead, it is the way the drone combines a 247g foldable body, 3-axis mechanical gimbal, brushless motors, GPS positioning, 5G Wi-Fi FPV, and automated flight modes into one compact platform.
For a beginner who wants more than a toy drone, the XiL 017S offers a feature set worth considering. For travelers, its compact folded dimensions and relatively low weight are equally important.
The biggest thing to remember is that advertised specifications such as 20-minute flight time, 1,000m control distance, and 1,000m FPV range represent stated product figures rather than guaranteed real-world results. Actual performance will depend on the flying environment and operating conditions.
Overall, the XiL 017S is best viewed as a portable GPS camera drone aimed at beginners, hobbyists, and casual aerial creators—a category where having the right combination of stabilization, positioning, portability, and automated flight can matter more than chasing headline specifications alone.
