YLR/C YL09 rc drone is not trying to be another basic camera drone. Its feature list combines several functions that are usually found separately: a brushless motor system, 720P FPV video, a built-in 4.3-inch LCD controller, dual cameras, a servo-adjustable camera, optical-flow positioning, infrared obstacle avoidance, waypoint flight, and even a one-key spray function.
That makes the YL09 interesting for a specific reason. Rather than focusing on one headline specification, it attempts to create an all-in-one flying platform for users who want a larger-screen FPV experience without relying entirely on a smartphone.
According to the Banggood listing, the drone uses a 3.7V 1200mAh LiPo battery, a six-axis gyro, 2.4GHz control, a brushless motor setup, and a Mode 2 controller with its own 4.3-inch display. The advertised flight time is around 10–12 minutes in an interference-free environment.
YLR/C YL09 Specifications at a Glance
| Feature | YLR/C YL09 |
|---|---|
| Motor | Brushless |
| Gyro | 6-axis |
| Positioning | Optical flow |
| Main camera | 720P HD |
| Camera system | Dual camera |
| Camera adjustment | Up to 90° by remote |
| FPV | 2.4GHz Wi-Fi |
| Controller screen | 4.3-inch LCD |
| Controller range | About 100m* |
| FPV range | About 50–80m* |
| Battery | 3.7V 1200mAh LiPo |
| Claimed flight time | 10–12 minutes* |
| Charging time | About 60 minutes |
| Obstacle avoidance | Infrared |
| Takeoff weight | 156g |
| Flight functions | Waypoint, point of interest, return-to-home, optical-flow hover |
*Manufacturer/listing figures can vary with environment, interference, battery condition, and flying conditions.
The 4.3-Inch Screen Is One of the YL09’s Biggest Differences
The most noticeable feature is arguably not the camera or motor. It is the controller.

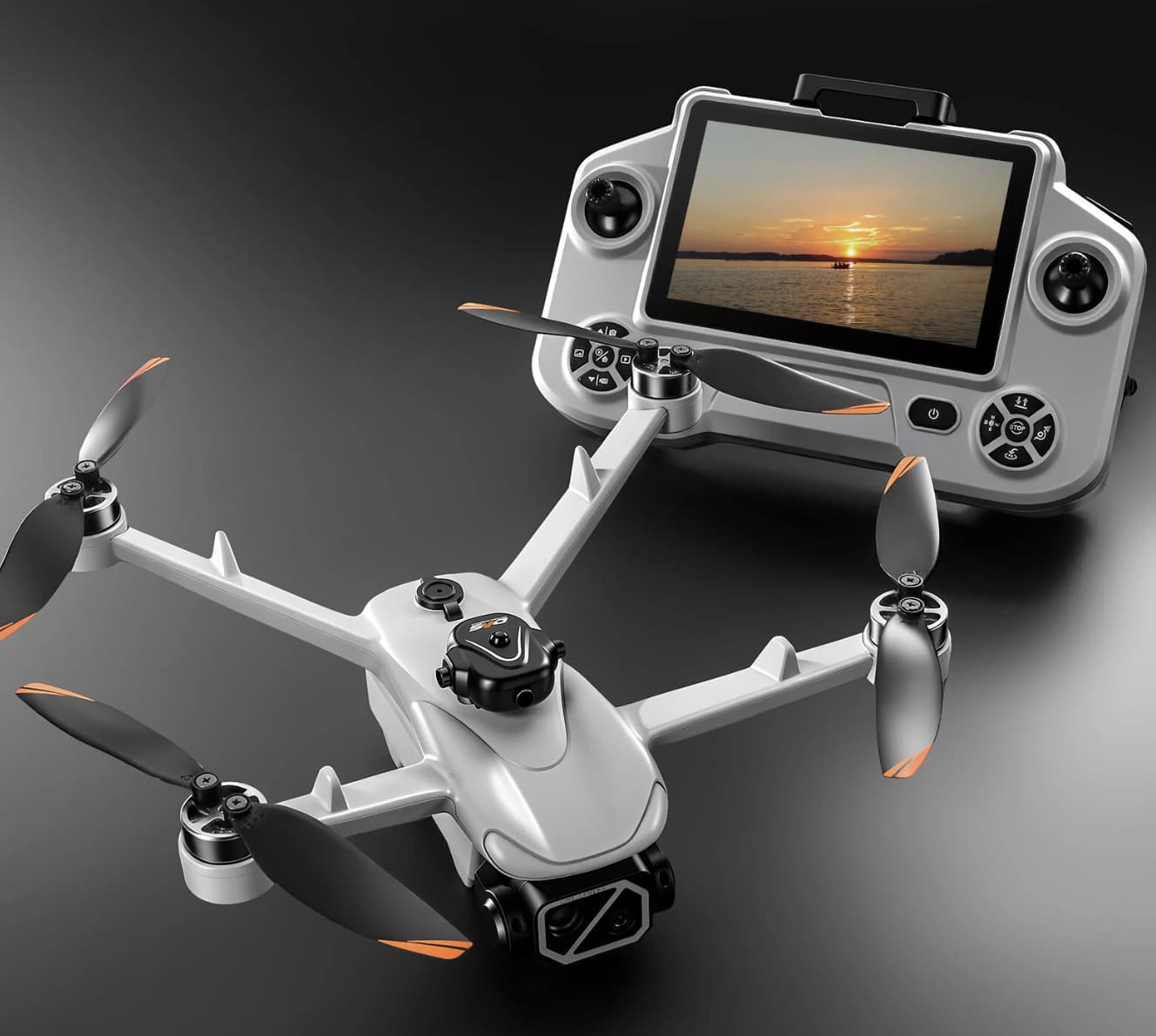

Instead of depending exclusively on a phone for FPV viewing, the YL09 comes with a remote controller incorporating a 4.3-inch LCD screen. The listing describes the controller as a screen-equipped unit designed to display the drone’s live image.
That changes the way the drone is used.
A dedicated screen means you can keep the phone in your pocket while flying, rather than mounting a smartphone onto the transmitter and dealing with notifications, incoming calls, or a separate app running in the background.
The system still supports Wi-Fi FPV through a mobile device, so the screen controller is not the only viewing option. The listing specifies compatibility with iOS 9.0 or later and Android 4.4.4 or later.
For casual flying, this could make the YL09 feel more like a traditional RC aircraft controller while retaining the convenience of a live camera feed.
720P Camera With Remote Angle Adjustment
The YL09 uses a 720P HD camera system and supports a remotely adjustable camera angle of up to 90 degrees. The product listing also identifies the drone as having a dual-camera setup.
The important point here is not simply the 720P number. This is a relatively modest camera resolution by current smartphone standards, but the ability to adjust the camera angle remotely gives the pilot more control over what is visible during flight.
That can be useful when changing between forward-looking views and views directed more toward the ground.
The YL09 also supports JPG, MP4, and AVI formats according to the listing. A memory card is included in the listed package.
However, buyers should keep expectations realistic. A 720P camera is better viewed as an FPV and casual aerial-imaging feature rather than a replacement for a dedicated photography drone.
Brushless Motors Give the YL09 a Different Hardware Foundation
The YL09 uses brushless motors rather than the brushed motors commonly found on inexpensive entry-level toy drones. The listing specifically highlights brushless operation and describes the system as offering stronger output and improved wind resistance.
Brushless motors are particularly relevant in a drone because motor efficiency, responsiveness, and durability can have a noticeable effect on the flying experience.
That does not automatically mean the YL09 will perform well in every outdoor condition. Wind, battery charge, payload, temperature, and pilot input still matter. The manufacturer’s advertised capabilities should therefore be treated as specifications rather than independent performance measurements.
Still, the brushless configuration makes the YL09 more interesting than a typical low-cost brushed quadcopter.
Optical Flow Positioning Is Designed for Easier Hovering
Another useful feature is optical-flow positioning.
Instead of relying only on the pilot’s control inputs, the YL09 uses an optical-flow system to help maintain its position when hovering. The listing describes this feature as providing a more stable fixed-point hover.
For newer pilots, this can be more important than having a long list of advanced flight modes.
A drone that can maintain its position more consistently is easier to control while the pilot is learning basic movements such as ascending, descending, rotating, and moving sideways.
Optical flow should not be confused with GPS positioning, however. The YL09’s listed positioning system is optical flow, so users should not assume it provides the same positioning behavior or outdoor navigation capabilities as a GPS-equipped drone.
Infrared Obstacle Avoidance Adds Another Layer of Assistance
The YL09 also includes infrared obstacle avoidance and is advertised with 360-degree surrounding obstacle detection.
This is useful in principle, particularly when flying around objects that could otherwise be difficult for a beginner to judge from the pilot’s position.
But obstacle avoidance should never be treated as a substitute for active piloting.
Sensors can have limitations depending on the shape, color, surface, lighting, distance, and movement of an object. Pilots should maintain visual awareness of the drone and avoid assuming that the system can detect every possible obstacle.
That distinction is particularly important when flying outdoors.
Waypoint and Point-of-Interest Flight Make the YL09 More Than a Basic RC Drone
The YL09 has several automated flight functions that make its feature set considerably broader than a simple four-channel quadcopter.
The listing describes waypoint flight, allowing a route to be planned by drawing points on a map in the associated app. It also lists a point-of-interest mode, where a selected location can be used as the center of an automated circular flight path.
These modes could be useful for creating more repeatable aerial movements.
For example, a beginner might find it easier to concentrate on the camera view when the drone is following a predefined route rather than manually controlling every movement.
At the same time, automated flight features should be tested in an open and controlled area first. The advertised functions do not remove the need to understand the drone’s surroundings and local flight restrictions.
Return-to-Home Is Another Practical Safety Feature
The YL09 listing includes one-key return-to-home functionality and states that the drone can automatically return when the battery is low or the signal is lost.
This is one of those features that sounds simple but can be useful during everyday flying.
However, the term “return-to-home” can mean different things on different drone platforms. Since the YL09 is listed with optical-flow positioning rather than GPS, users should not assume that its return behavior is equivalent to a GPS drone automatically calculating its geographic position.
It is worth testing the function at low altitude and in an open area before depending on it during a longer flight.
What About the One-Key Spray Function?
The YL09 has one particularly unusual feature: a built-in spray function.
Banggood describes a built-in water tank and a one-click spray function for creating mist effects outdoors or dispersing products such as perfume or air freshener indoors.
This is clearly different from the normal camera-drone feature set.
For most buyers, it is probably better viewed as an optional novelty or experimental feature rather than the primary reason to choose the drone. Users should also follow the manufacturer’s instructions carefully regarding what can safely be placed in the tank. Do not assume that every liquid is suitable for use with the mechanism.
Battery Life: Keep Expectations Realistic
The YL09 uses a 3.7V 1200mAh LiPo battery, and the product listing quotes approximately 10–12 minutes of flight time under interference-free conditions. Charging is listed at about 60 minutes.
This is an important distinction when evaluating the drone.
A 10–12 minute advertised flight time does not mean every flight will last that long. Wind, repeated acceleration, camera use, temperature, battery age, and flying style can all affect actual endurance.
The listing offers one- and two-battery configurations, which could be useful for pilots who want additional flying time between charging sessions.
Is the YL09 Portable?
The drone measures approximately 290 × 260 × 85mm, and the listed takeoff weight is 156g including the battery. The body is described as unfoldable, so it is not an ultra-compact folding drone.
For readers interested in other affordable remote-controlled models, our RC hobby buying guide covers the features that matter when comparing different types of RC vehicles.
That gives the YL09 a different priority from pocket-sized camera drones.
Its appeal is more about the combination of a relatively substantial airframe, brushless motors, built-in-screen controller, and multiple flight functions than about disappearing into a jacket pocket.
The included storage bag is also useful for keeping the drone and accessories together when transporting it.
YLR/C YL09 vs a Basic Beginner Drone
The YL09’s main advantage on paper is the number of functions packed into one package.
If you are comparing different beginner-friendly aircraft, our guide to RC drones for beginners explains the main differences between brushed and brushless motors, flight assistance, camera systems, and control methods.
A basic beginner drone may focus on simple controls, altitude hold, a small camera, and basic one-key takeoff and landing. The YL09 goes further with a brushless motor system, optical-flow positioning, infrared obstacle avoidance, FPV, a dedicated LCD controller, adjustable camera angle, waypoint flight, point-of-interest flight, and return-to-home functions.
The trade-off is that more features also mean more things to learn.
Someone who simply wants a tiny drone for occasional indoor flying may not need all of these functions. On the other hand, a hobbyist interested in experimenting with FPV, automated flight paths, and different camera angles may find the broader feature set more relevant.
Who Is the YLR/C YL09 For?
The YL09 makes the most sense for users who want several capabilities in one RTF package.
It may be worth considering if your priorities include:
- A brushless RC drone rather than a basic brushed model
- A controller with a built-in 4.3-inch display
- 720P FPV video
- Remote camera-angle adjustment
- Optical-flow hovering assistance
- Infrared obstacle avoidance
- Waypoint and point-of-interest flight
- One-key return and automated takeoff/landing
- An unusual spray function for experimentation
It may be less suitable if your priority is professional aerial photography, GPS-based navigation, extremely long flight time, or a very small travel-friendly design.
Final Thoughts
YLR/C YL09 rc quadcopter stands out because it takes a different approach to the budget RC drone category.
Its strongest selling point is not any single specification. Instead, it is the combination of a brushless quadcopter, built-in 4.3-inch FPV screen, 720P dual-camera system, optical-flow positioning, infrared obstacle avoidance, automated flight modes, and one-key spray function.
The built-in display is particularly interesting because it gives the controller a more self-contained design, while the brushless motors and optical-flow system move the YL09 beyond the simplest entry-level drones.
At the same time, the advertised 10–12 minute flight time, 720P camera, optical-flow positioning, and Wi-Fi FPV system show that this is better understood as a feature-rich recreational RC drone than a professional camera platform.
For buyers comparing affordable brushless drones, the YL09 is therefore worth looking at for its combination of control interface, flight assistance, FPV functions, and unusual extras, rather than judging it solely by camera resolution or battery capacity.
