The iFlight Protek R25 FPV Racing Drone is a high-performance, ready-to-fly drone designed for experienced pilots looking for a fast and agile machine to take their racing to the next level. This drone features a durable carbon fiber frame and powerful motors that allow it to reach speeds of up to 120km/h. The R25 also comes equipped with a range of advanced features such as a Whoop AIO F4 V1.1 Flight Controller Integrated with 20A ESC, a C01 Micro FPV Camera, and an ELRS 2.4G receiver for maximum control and precision.
Design

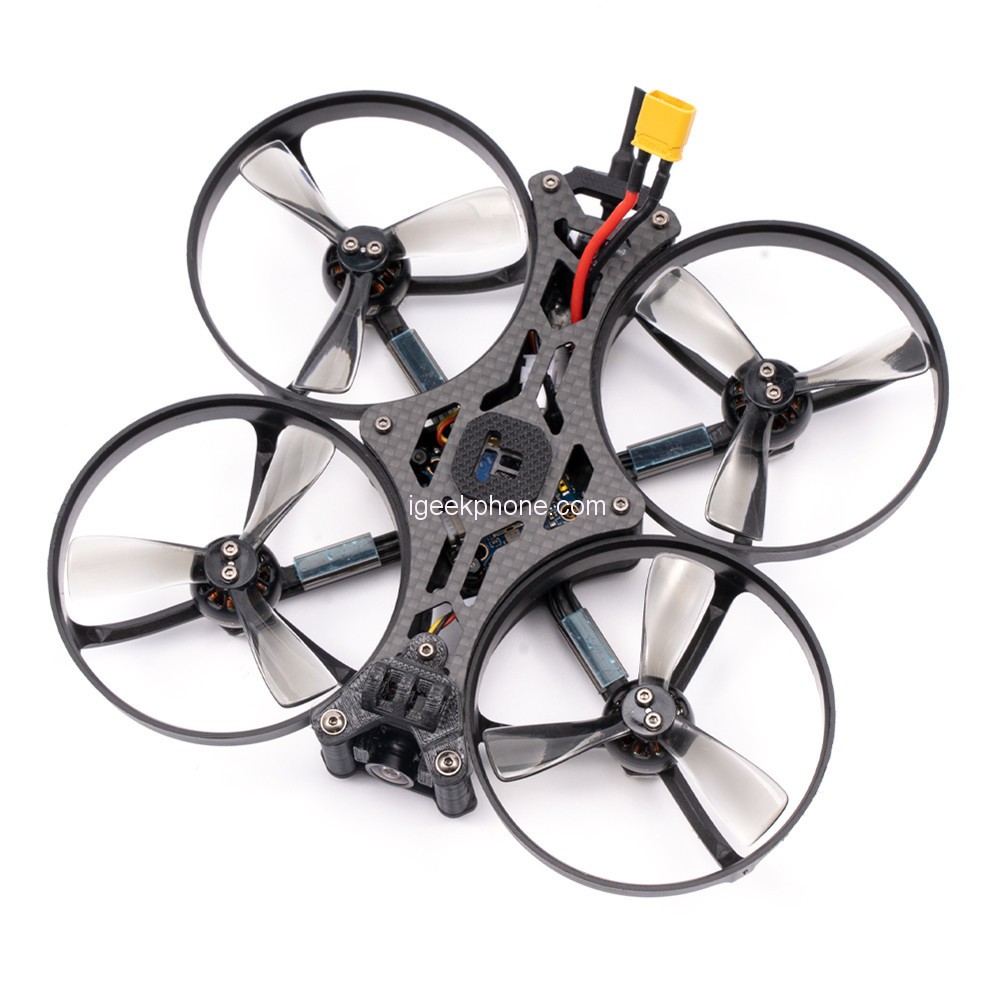

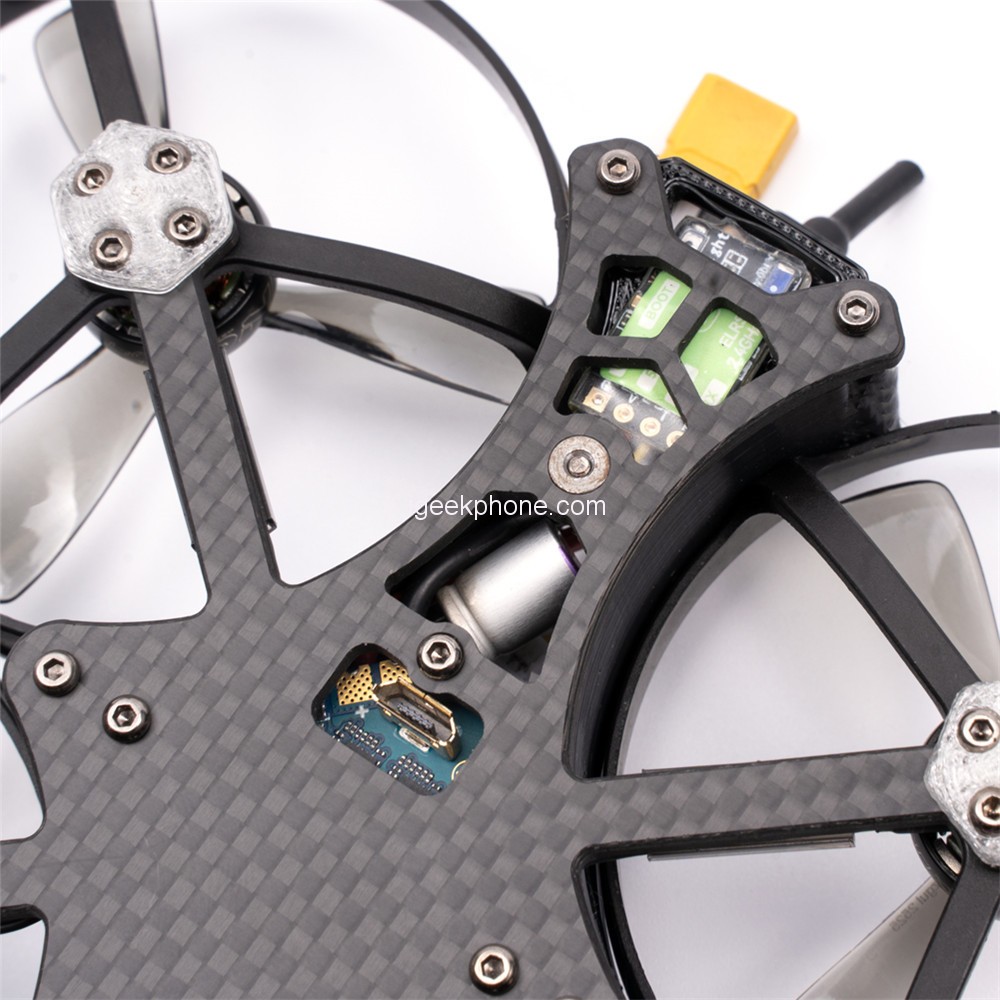

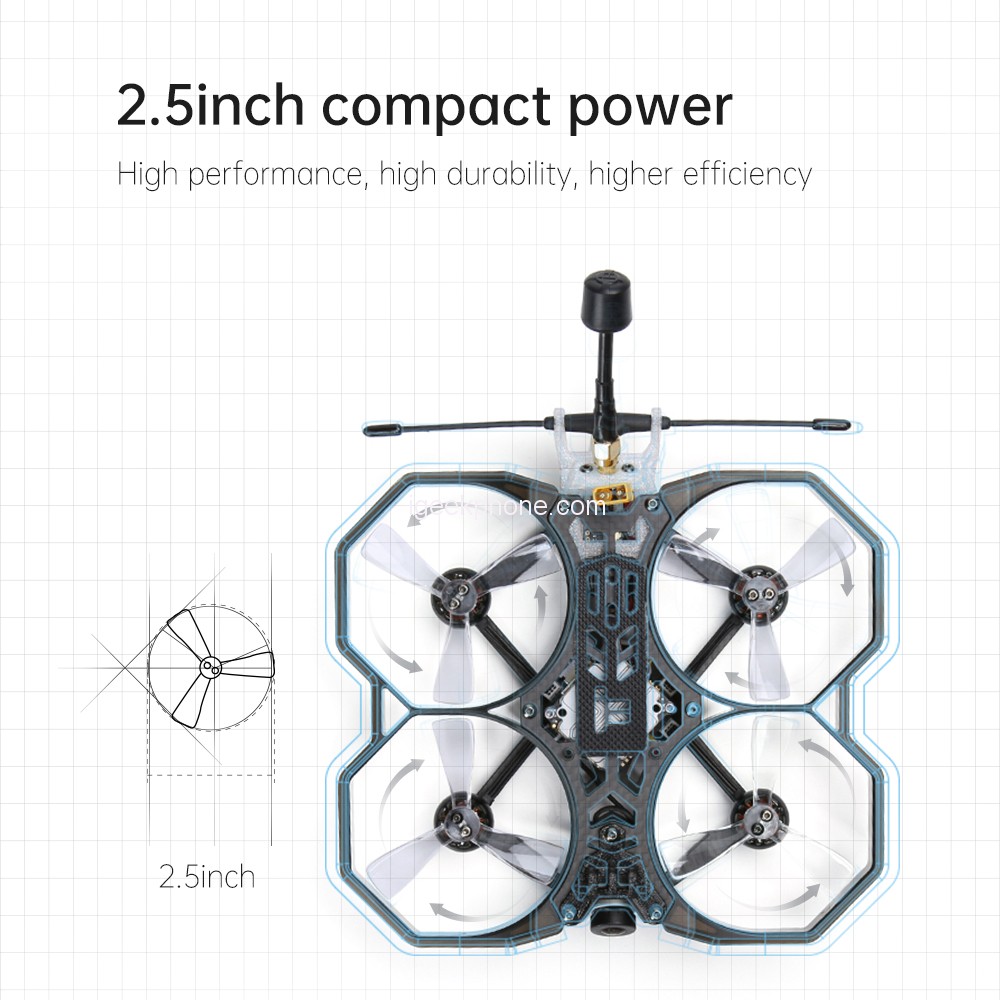

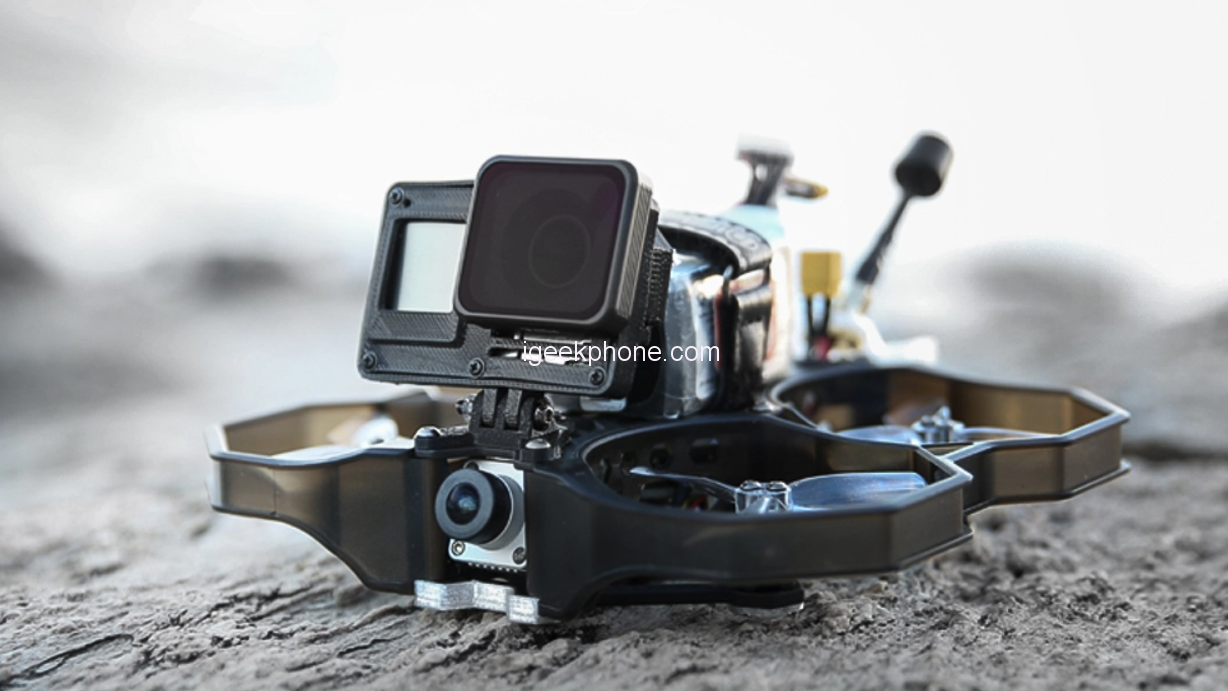

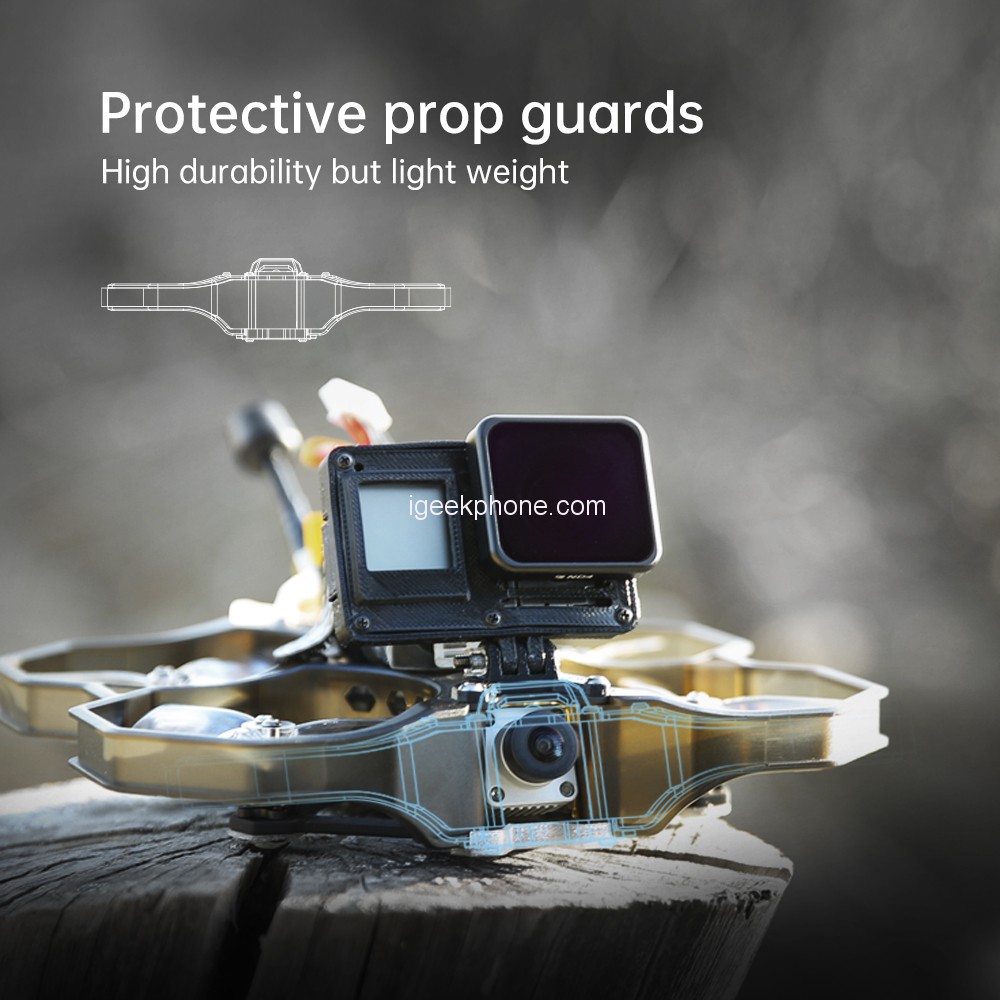

The iFlight Protek R25 FPV Racing Drone is a compact and durable drone designed for racing and aerial photography. It features a wheelbase of 113mm and a body size of 143mm x 158mm, making it highly maneuverable and agile. The bottom plate and arm thickness are 2.5mm and the top plate are 1.5mm, providing a sturdy and robust structure. The drone weighs 147.5g (without battery) and comes with durable plastic protectors and copper standoffs. Other key features include an easy-access USB port, LED battery status, a lost model buzzer, and a universal GoPro TPU for a full-size or naked GoPro. The drone can be easily disassembled with only 8 screws, making it quick and easy to repair or customize.
Features
The iFlight Protek R25 FPV Racing Drone is a high-performance racing drone; that is packed with features to enhance your flying experience. The drone is equipped with the Whoop AIO F4 V1.1 Flight Controller that comes with a 20A ESC; making it perfect for high-speed racing. The flight controller has a mounting pattern of 25.5*25.5mm/φ3mm and is compatible with the IFLIGHT_F411_PRO firmware target. It has a constant current of 20A and 25A (Burst) and an integrated current sensor for monitoring power usage.
The iFlight Protek R25 drone is powered by the XING X1404 4600KV Motor; which supports 2-4S voltage and has a KV of 4600KV. The motor has a configuration of 9N12P, a stator diameter of 14mm, and a stator length of 4mm. It has a shaft diameter of 2mm, a weight of 8.5g, and a mounting pattern of 99φ2mm. The drone also comes with Nazgul 2525 propellers (2 CW and 2 CCW); and a SucceX Mini Force 5.8GHz 600mW VTX that supports 40 channels and comes with a mounting pattern of 2020Φ3/2525 mmΦ2. The drone also includes a C01 Micro FPV Camera with a TVL of 1200TVL, a lens of 1.8mm, and a width of 14x14mm.
The iFlight Protek R25 drone comes with a Fullsend 4S 650mAh 95C Lipo Battery; a Commando 8 Radio Transmitter (ELRS 2.4GHz 500mW), and iFlight FPV Goggles; that support 40CH 5.8GHz and a built-in battery of 3.7V/2000mAh. The package also includes an M4 AC 30W 1-4S Battery Charger that supports LiPo; LiHV, and LiFe batteries and has a charging accuracy of <0.005V.
Conclusion
With its sleek design and cutting-edge technology, the iFlight Protek R25 FPV Racing Drone is the perfect choice for those looking to take their racing to the next level. You can buy it from Banggood at $449.99 in Flash Sale.
