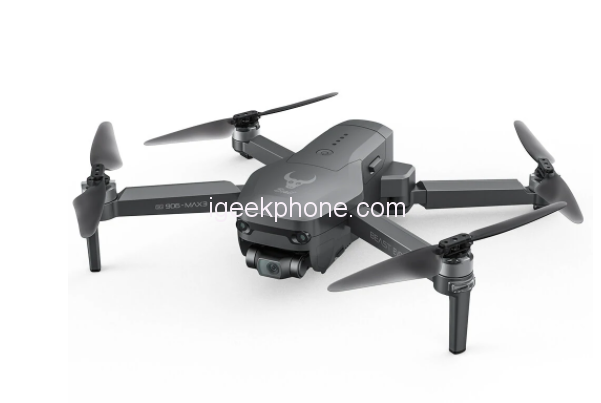

ZLL SG906 MAX3 BEAST EVO RC Drone Quadcopter

ZLL SG906 MAX3 BEAST EVO RC Drone Quadcopter

Brand: Xiaomi
Category: RC Drone

Offers

Our Rating

The overall rating is based on review by our experts

0

ZLL SG906 MAX3 BEAST EVO GPS 4KM Repeater Digital FPV with 4K EIS Camera 3-Axis Brushless Gimbal Vision Obstacle Avoidance RC Drone Quadcopter RTF

Specifications:

SG906 MAX3 Item NO. BEAST EVO
Color Black
Motor 1806 Brushless Motor
Motor Power 1700/KV
Wheelbase 37cm
Electric Power Adjustment 30A
Image transmission receiving method Digtal Image Transmission + Repeater strong signal
Gimbal Three-Axis Brushless Gimbal
Lens Self-stabilizing electronic anti-shake Lens
Obstacle avoidance detection range 360 °
Obstacle avoidance detection range ≤10M
Max remote control phone clip size 7inch
Remote Control Battery Bulit-in 3.8V 3000mAh Lipo Battery
Drone Battery 11.4V 3000mAh
Control distance (Free interference and no occlusion) 4000m
Cruising mileage(max) 8KM
Wind resistance level(max) level 6
Ascendant speed(max) 4m/s
Descent  speed(max) 3m/s
Take-off altitude(max) 4500m
Flying speed(max) 45km/h
Flight time About 30mins
Charging time About 8 hours
USB Charging 5V
Product size 17.4 x 8.4 x 7cm(Foldable)
28.3 x 25.3 x 7cm(Unfoldable)
Product’s Weight 576.8g
Battery Weight 173.2g
Storage Card 128G(Max)
Camera Gimbal parameters Image sensor 1/3.2 Inches
Pixel 4K HD Camera
APP Name XIL MAX(IOS Android)
Gimbal Angle(adjustment angle range) 110 ° automatic restores (Vertical)
65° automatic restores (Sideways)
45° automatic restores (Horizontal)
Camera lens Adjustable camera by transmitter, 110°
Wifi image transmission distance About 4000m
GPS Follow me 15m
IMAGE Follow me 1-5m
Focal length 50X
Hand gesture shooting/video reconization 1-5M
Video resolution(Front camera) 2048*1080(TF)
1920*1080P (APP)
Photo resolution(Front camera) 3840*2160P(TF)
3840*2160P(APP)
Video resolution(Down-looking camera) 1280*720p
Photo resolution(Down-looking camera) 1280*720p
Main camera video maximum stream 60Mbps
Frame rate 30 fps
Obstacle Avoider Measuring mileage 0.05-20 meters
Measurement accuracy 2%
Measuring speed 100HZ
Resolution 1cm
Operating Voltage 3.5-5.5VDC
Power Consumption 60NA@5V
Communication Interface 12C
Communication Baud Rate Up to 400k
Communication Level TTJ3.3VDC

Note:

1. The maximum SD card supported by the drone: 256GB SDHC/SDXC UHS-I Speed Grade 1 or UHS-I Speed Grade 3 micro SD

2. It is recommended to use a mainstream brand microSD card with a minimum writing speed of 30MB/s or more. Other low-speed cards may not only cause videos and pictures to be unstorable, but also cause video transmission freezes and APP flashbacks.

Features:

– Built-in repeater in the remote control

– Front and rear visual obstacle avoidance function

– GPS/GLONASS double mode

– 4K HD adjustable camera
Mechanical three axis brushless motor gimbal
– Optical flow positioning mode
Digtal image transmission
– Intelligent follow
– Surround flight
– Waypoint flight
– Trajectory pointing flight
– Folding portable fuselage
– One key course reversal
– Creative video
– Brushless motor
– 50X Focal length
– Aircraft retrieval function
– MV functions: filters, video effects, add background music, picture / video sharing

Package Included:

1 x SG906 MAX3 RC Quadcopter 1 x Remote Controller 1 x 11.4V Lipo Battery 1 x USB Charging Cable 3 x RC Connection Cable 2 x Spare Propellers 1 x Mobile Phone Mounts 1 x Screwdriver 8 x Spare Screw 1 x User Manual 1 x Carrying Case
