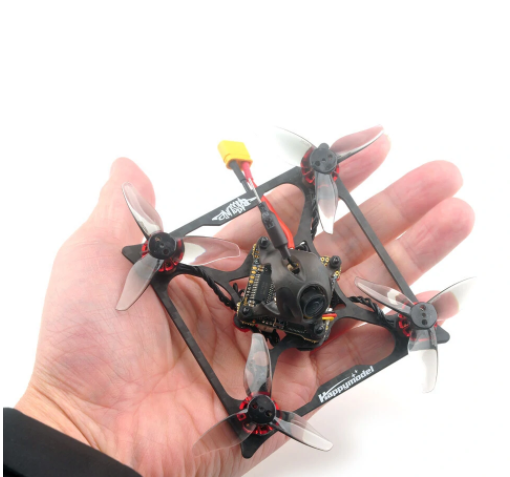

Happymodel Bassline 2S FPV Racing Drone

Happymodel Bassline 2S FPV Racing Drone

Brand: Xiaomi
Category: Accessories












Offers

  • Geekbuying Happymodel Bassline 2S FPV Racing Drone $119.69
    View Offer

Our Rating

The overall rating is based on review by our experts

0

Features:

X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX

VTX Power up to 400mw

Support ELRS V3.0 (Need to upgrade firmware)

Powerful EX1103 KV11000 motors

CaddxFPV Ant FPV camera

Recommend 2S 350mah/450mah/550mah/650mah battery (Not include)

Battery tray size: Maximum support for batteries with a width of approximately 17mm and a height of approximately 13mm

Specifications:

Brand Name: Happymodel

Item Name: Bassline 2S 2inch Micro FPV toothpick drone
Wheelbase: 90mm
Size: 115mm*115mm*40mm

Analog version Weight: 40gram

Optional Receiver version:

2.4G ELRS SPI

SPI Frsky D8/D16

SPI Flysky

PNP (without onboard receiver)

Spare parts specifications:

Motor Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S
Propellers Weight:0.88g

Material: PC

Pitch:2.3inch

Props Dia:52.17mm

Center Thickness:5mm

Center Hole Dia:1.5mm

Flight controller X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280

X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR

X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS

X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689 or ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC

Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection

Built-in current sensor

Onboard 4in1 ESC Power supply: 1-2S LiPo/LiPo HV

Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Default Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300

Support Bluejay firmware

Onboard SPI ExpressLRS 2.4GHz Receiver Packet Rate option: 50Hz/150Hz/250Hz/500Hz

ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz

Antenna : SMD antenna
Telemetry output Power: <12dBm

Receiver protocol:  SPI ExpressLRS

Compatible with ExpressLRS V2.0 TX Module

Couldn’t flash separately ExpressLRS firmware

Could flash FC firmware to support ExpressLRS v3.0 TX module

Onboard SPI Frsky D8/D16 receiver Version SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8/D16 model

Channels: 8ch/16ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter

Failsafe support

Onboard SPI Flysky receiver Version SPI BUS receiver
Protocol: AFHDS-2A
Channels: 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support
PNP Version

(without onboard receiver)

Full UART1 for external Receiver

Support CRSF/GHOST/SBUS/IBUS/DSMX protocol

IR1 pad(invert RX1) used for SBUS input

Onboard 5.8g OPENVTX Firmware version: OPENVTX

Smartaudio v2.1

PIT Mode support

RCE Mode support

Channels:48ch

Transmitting Power: 0/RCE/25mw/100mw/400mw

Power supply: DC 5V

Current (5v): <650ma (400mw)

Caddx ANT 1200tvl camera Image Sensor: 1/3″ CMOS Sensor

Horizontal Resolution: 1200 TVL

TV System: NTSC or PAL

IMAGE: 16:9 or 4:3

Synchronization: Internal

Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio : >52dB (AGC OFF)

Video Output: CVBS

Lens: 1.8mm

Min. Illumination: 0.001Lux@F1.2

Auto Gain Control: YES

WDR: Global WDR

DNR: 3D DNR

Dimensions: 14*14mm(with bracket to 19*19mm)

Wide Power Input: DC 3.7-18V

Weight: 2g (N.W.)

Package Included:

Item Name Qty
Bassline 2inch frame and canopy 1
Option1: X12 ELRS V2.1 flight controller built-in SPI ELRS 2.4G receiver 1
Option2: X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver
Option3: X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver
Option4: X12 PNP V1.1 flight controller without onboard receiver
EX1103 KV11000 brushless motor 4
Gemfan toothpick 2023 tri-blade propellers(4cw+4ccw) 1
Caddx ANT 1200TVL Camera 1
Onboard 5.8G Openvtx 0mw~400mw VTX 1
Canopy for 14mmx14mm camera 1
