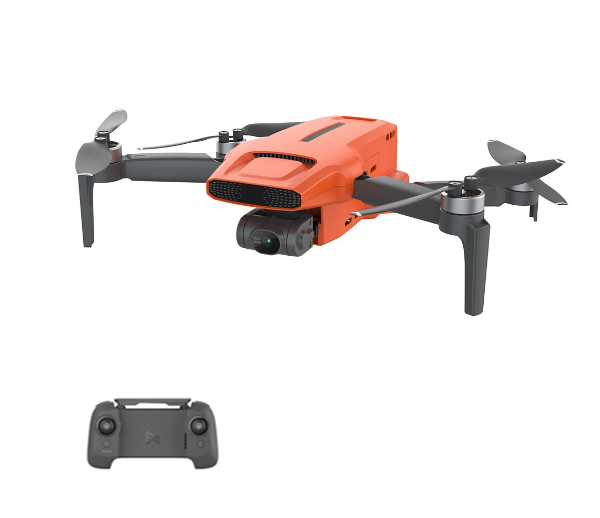

FIMI X8 MINI 3 RC Drone

FIMI X8 MINI 3 RC Drone

Brand: VIVO
Category: RC Drone

Offers

Our Rating

The overall rating is based on review by our experts

0

Specifications:

Aircraft

Dimensions 145 x 85 x 56mm (Folded)

200 x 145 x 56mm (Unfolded)

Color Orange
Diagonal Distance
214mm
Model FMWRJ04A3
Takeoff Weight (with battery) Approx. 245g (with the Intelligent Flight Battery)
Max Ascension Speed 5m/s
Max Descent Speed 3.5m/s
Max Flying Speed 18m/s (in a windless environment at sea level )
Max Takeoff Altitude ≤ 4000m
Hovering Accuracy Vertical: ±0.1m (when Vision Positioning is active)

±0.5m (when GPS Positioning is active)

Horizontal: ±0.3m (when Vision Positioning is active)

±0.5m (when GPS Positioning is active)



Max Tilt Angle 35°
Max Wind Speed Resistance  10.7m/s
Max Hovering Time 29 minutes
Maximum Flight Time
32mins (the Intelligent Flight Battery)
GNSS GPS/Galileo/BeiDou/GLONASS
Operation Frequency
5.725 – 5.825GHz
Operating Temperature
0~40℃

Gimbal Camera

Three-axis Mechanical Gimbal
-115° ~ 40° (Pitch) -40° ~ 40° (Roll) -40° ~ 40° (Yaw)
Controllable Rotation Range
10° ~ -90° (Pitch)
Angular Vibration Range ±0.005°
Image Sensor 1/2-inch CMOS
Lens
FOV 79°
Aperture F / 1.6
Format Length 4.71mm
Format Equivalent
24mm
Focus  1m to ∞
Effective Pixels 48 million pixels
ISO Range Video 100-26500 Photo 100-3200
Shutter Speed 1/8000s – 2s
Max Photo Size 8064 x 6048
Max Video Resolution 3840 x 2160 @60/30/25/24fps
Max Video Bitrate 100Mbps
Supported File System FAT32/exFAT
Photo Format
JPG/DNG
Video Format
MP4(H.265)
Recommended Memory Card
Micro SD 8-256GB

(U3 and above)

Remote Controller

Model
FMYKQ04A3
Weight About 260g
Dimensions
165 x 89 x 47mm
Operation Frequency
2.4000 GHz – 2.4835 GHz 5.725 GHz – 5.850 GHz
Battery Type Li-ion
Capacity 3500mAh
Nominal Voltage 3.7V
Input
5V=2A
Max Battery Life 8 hours (without charging the mobile device) 4 hours (charging the mobile device)
Max Signal Effective Range FCC (No interference, No obstruction)
Approximately 9KM
Minimum Latency Approx. 120 milliseconds
Supported Mobile Device Interface Types Lighting,USB-C
Operating Temperature
0 – 40℃
Charging Temperature 5 – 40℃

Intelligent Flight Battery

Battery Type
Li-ion 2S
Weight
Approx. 85g
Capacity
2200mAh
Nominal Voltage
7.7V
Charging Limited Voltage
8.8V
Energy
16.92Wh
Charging Temperature Range
5 – 40℃

Intelligent Flight Battery Plus

Battery Type
Li-po 2S
Weight
Approx. 160g
Capacity
3100mAh
Nominal Voltage
7.2V
Charging Limited Voltage
8.4V
Energy
22.32Wh
Charging Temperature Range
5 – 40℃
