MINGDA Magician Pro 3D Printer Specs

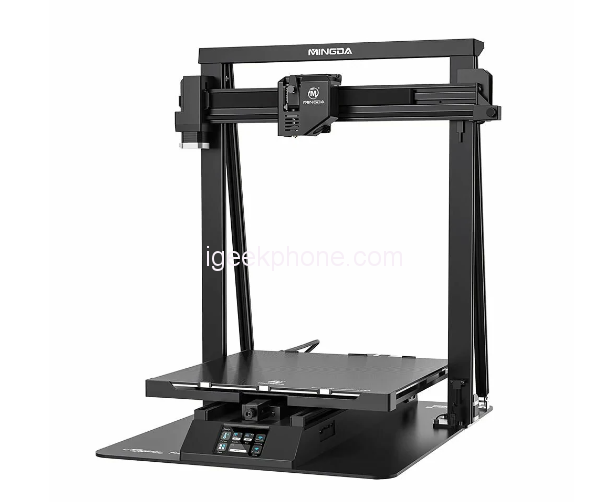

MINGDA Magician Pro 3D Printer

Brand: SCULPFUN
Category: 3D Printer
Add to Compare

Offers

MINGDA Magician Pro 3D Printer $499
View Offer

Our Rating

The overall rating is based on review by our experts

Introduction:

MINGDA Magician Pro–An amazing modular FDM 3D Printer unleashes your 3D printing potential! Equipped with a new 32-bit motherboard and a high-performance Cortex-M4 architecture main control chip, MINGDA features faster computing speed and a smoother system. The integration silent driver makes the motherboard have both silent printing and precise voltage output control, which ensures a more accurate and silent printing.

Features:

Auto-Leveling: One touch smart Auto Leveing
Huge Building Size: 400*400*400mm
Fast Assembly: Modular structure
Built-in PSU: PSU build-in a closed type, without exposure, which is more secure.

Specifications
● Print size: 40×40×40cm (15.7″×15.7″×15.7″)
● Calibration: Self-developed Automatic Leveling, 36 Points
● Filament diameter: 1.75 mm
● Printing material: PLA / ABS / PETG & TPU
● Nozzle size: 0.4mm default, wide range of other nozzles supported
● Extuder: Direct Drive,Double Gears
● Filament run-out detection: Support
● Resume Printing: Support
● Tool Box: Yes
● Max nozzle temperature: 260 °C/500 °F
● Max heatbed temperature: 110 °C/230 °F
● Average speed: 8-10 cm/s,3.1-3.9in./s
● Control panel: 3.5 inch colorful LCD touch screen
● Print interface: SD Card,U Disk,USB-C
● Z-axis: Double threaded rod with synchronous belt
● Machine Weight: 14.5kg
● Machine Dimension: 65×58.6×67.5cm / 25.5*23.0*26.5in(X×Y×Z)

Donwnload The File You Needed:

Manual :please click on it to download.
Slicer/ Cura
Firmware: / Pro_GD_1.6.6.4_V22 ; Pro_ST_1.6.6.4_V22
