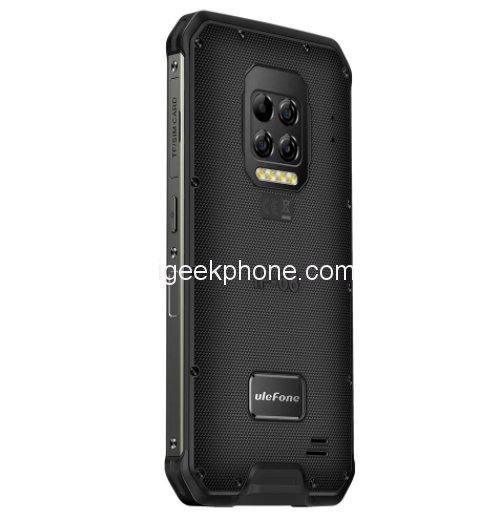

Ulefone Armor 9

Ulefone Armor 9

Brand: Ulefone
Category: Mobile

  • Processor

  • RAM

  • Storage

  • Display

  • Camera

  • Operating System

Offers

Our Rating

The overall rating is based on review by our experts

7.3
  • Design 7 / 10
  • Display 7 / 10
  • Multimedia 7 / 10
  • Connectivity 7 / 10
  • Features 8 / 10
  • Camera 8 / 10
  • Performance 8 / 10
  • Call Quality 7 / 10
  • Usability 7 / 10
  • Battery 7 / 10

Specification:

Model  Ulefone Armor 9
Network  2G: GSM B2/3/5/8 (1900/1800/850/900)

CDMA 1X BC0/BC1 (800/1900)

3G: WCDMA B1/B2/B4/B5/B8

TD-WCDMA B34/B39

CDMA EVDO BC0/BC1

4G: FDD-LTE B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66

TDD-LTE B34/B38/B39/B40/B41

SIM Card Slots: Dual SIM Card Dual Standby (Nano SIM), Card Slot 2 supports Nano-SIM Card/TF Card

Click Here for network frequency of your country. Please check with your carrier / provider before purchasing this item.
Hardware  OS: Android 10

CPU: Helio P90(MT6779) Octa-core 64-bit 2.2GHz Processor

GPU: IMG PowerVR GM9446@970MHz

RAM: 8GB

ROM: 128GB

Card Extend: Supports an external TF card up to 2TB (VFAT)

Display  Display Size: 6.3 inch

Type: FHD+ Capacitive Touch Screen

Resolution: 2340*1080 pixels

Rear Camera  Main Camera: 64MP+5MP(Secondary camera for the FLIR thermal imaging function)+2MP

4-in-1 Super Pixel *

Four Rear flash, Touch Focus

Video Recording Resolution: 1080P/4K

Thermal Imaging Camera

Thermal Imaging Module: FLIR Lepton 2.5, 80X60, 50° HFOV, radiometric

Sensor Technology: Uncooled VOxmicrobolometer

Effective Frame Rate: 8.6 Hz (commercial application exportable)

Input Clock: 25-MHz nominal, CMOS IO Voltage Levels

Output Format: User-selectable 14-bit, 8-bit (AGC applied), or 24-bit RGB (AGC and colorization applied)

Pixel Size: 17 µm

Scene Dynamic Range: -10-140 °C (high gain); up to 400°C (low gain) typical

Spectral Range: Longwave infrared, 8 µm to 14 µm

Temperature Compensation: Automatic. Output image independent of camera temperature.

Thermal Sensitivity: <50 mK (0.050° C)

Video Data Interface: Video over SPI

Non-Operating Temperature Range: -40 °C to +80 °C

Optimum Temperature Range: -10°C to +80°C

Shock: 1500 G @ 0.4 ms

Array format: 80 × 60, progressive scan

FOV – Diagonal: 63.5°

FOV – Horizontal: 50° (nominal)

Image Optimization: Factory configured and fully automated

Non-Uniformity Correction (NUC): Automatic with shutter

Solar protection: Integral

Input Supply Voltage: 2.8 V, 1.2 V, 2.5 V to 3.1 V IO

Power Dissipation: 150 mW (operating), 650 mW (during shutter event), 4 mW (standby)



MyFLIR Application

Features

Spot Meters: 3-moveable

ROI: Whole image and rectangle (resizable)

Min, Max, Average

MSX: Yes

Visible only: Yes

Alignment Tool: Yes

Save Image: Photo, Video, Time-lapse, YouTube Live

Radiometric Jpeg: Yes

FLIR Tools® compatable: Yes

Reporting: Yes

Recall Image and video: Yes

Span and Level adjustment: Yes

Span and Level Lock: Yes

Color Palettes: Yes, 9

Temperature Scale: Yes, fixed, and customizable

Help Menu: Yes, hold icon for description or use guided menu

* 64MP camera indicates that the primary image sensor has 64 million physical pixels. As GW1 image sensor adopts the Quad Bayer (Tetracell) technology, some benchmark tests can only detect this technology mode, and show the camera sensor as 16MP. 64MP mode is immediately capable of supporting 64MP.

Front Camera  Sub camera: 8.0MP front camera
Language  Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese
Battery & Charging  Battery: 6600mAh(typ), Built in

Quick Charge: 9V 2A, 18W fast charge

Charge Interface: USB Type-C

Charger Type: EU Type

Other Features  WIFI: 802.11 a/b/g/n/ac, 2.4G/5G
VoLTE: Whether you can use VoLTE depends on the local carriers, because not all of the the local carriers can support this function.

bluetooth: BT5.0
Positioning: GPS/AGPS/GLONASS/BEIDOU/Galileo
Material: TPU+10%GF+PC
Sensor: Acceleration Sensor, G-sensor, P-sensor, L-sensor, E-compass, Gyroscope, NFC, coulombmeter, OTG, Side Fingerprint, Face recognition
FM Radio: Yes
Waterproof: IP68/IP69K Waterproof
Audio Chipset: FS1860U

Audio Jack: 3.5mm CTIA
Notification Light: Yes
Battery Status Light: Yes

Size & Weight  Product Size: 168.2*82*15mm
Product Weight: 324g
Packing List  1 x Ulefone Armor 9 Smartphone

1 x Data Cable (100cm)

1 x Type-C to Micro-USB Adapter

1 x Tempered Glass Screen Protector

1 x Sling

1 x SIM needle

1 x OTG Cable

1 x EU Charger
