Xiaomi AX3000 WiFi6 Wireless Router Specs

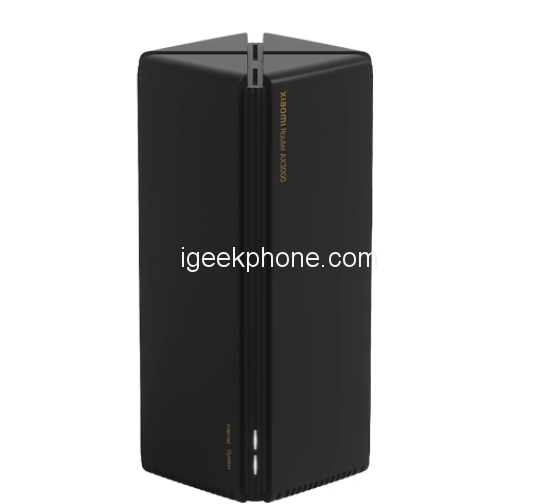

Xiaomi AX3000 WiFi6 Wireless Router

Brand: Xiaomi
Category: Accessories
Add to Compare

Offers

Xiaomi AX3000 WiFi6 Wireless Router $69.99
View Offer

Our Rating

The overall rating is based on review by our experts

Specifications:

Brand	Xiaomi
Model	AX3000
Hardware Configuration
Processor	IPQ5000 dual core 1.0GHz CPU
Network acceleration engine	Single core 1.0GHz
RAM	256MB
2.4G Wi-Fi	2×2 (supports up to IEEE 802.11x protocol, theoretical maximum rate can reach 574Mbps)
5G Wi-Fi	2×2 160MHz (supports up to IEEE 802.11x protocol, theoretical maximum rate can reach 2402Mbps)
Product antenna	4 * built-in antennas
Product heat dissipation	Natural heat dissipation
Machine interface	1 * 10/100/1000M adaptive WAN port (Auto MDI/MDIX)
Machine interface	3 * 10/100/1000M adaptive LAN ports (Auto MDI/MDIX)
LED indicator	1 * System indicator
LED indicator	1 * Internet indicator
Button	1 * System reset
Button	1 * Mesh button
Power input interface	1
Protocol standard	IEEE 802.11a / b/ g/ n / ac / ax, IEEE 802.3 / 3u / 3ab
Certification standards	GB / T9254-2008; GB4943.1-2011
Wireless Parameters
Dual frequency	2.4GHz and 5GHz
Wireless channel	2.4GHz channel: 1, 2. 3, 4, 5. 6, 7, 8, 9, 10, 11, 12, 13
Wireless channel	5GHz channel: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165
Modulation	11b: DSSS: DBPSK(1Mbps), DQPSK(2Mbps).CCK(5.5/11Mbps)
	11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
	11n: MIMO-OFDM: BPSK.QPSK, 16QAM, 64QAM.
	Rate set: MCSO-MCS15
	11ac: MIMO-OFDM: BPSK, QPSK. 16QAM. 64QAM, 256QAM. Rate set: MCSO-MCS9 (support 2 streams)
	1lax: MIMO-OFDM: BPSK.QPSK.16QAM.64QAM, 256QAM1024QAM, rate set: MCSO-MCS11 (support 2 streams)
Software Parameters
Operating system	MiWiFi ROM, an intelligent routing operating system based on OpenWRT’s deep customization
Wireless security	WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-scratch network
Management application	Support Web, Android, IOS
Working Environment
Working temperature	0 ~ 40℃
Storage temperature	-40 ~ 70℃
Working humidity	10% ~ 90%RH (non-condensing)
Storage humidity	5%-90%RH (non-condensing)
